DESIGN CONSIDERATIONS

JAPANESE DESIGNED

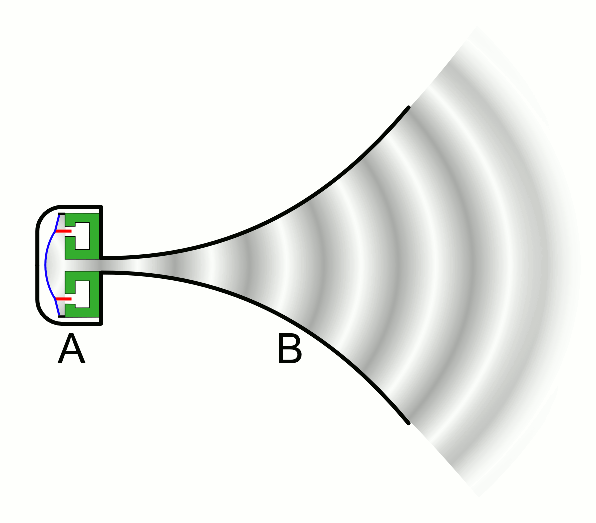

BACK LOADED HORN

Originally developed in 1993 in Japan to produce big sound from a small enclosure. Designed to achieve a 40 HZ low end response from a 5.5' folded horn.

DRIVERS OPERATED IN

OPTIMAL RANGES

Each driver is operated in its "sweet spot". Most full range speakers sacrifice tonality and sound stage by striving to achieve 20 Hz to 20 Khz response from a single driver.

VERTICALLY SLICED

CORE MATERIAL

Vertical sliced for accurate dimensional construction with high structural rigidity. Constrained layers dampen unwanted vibrations for purity of tone.

WASP CARBON FIBER

OUTER SHELL

Carbon fiber is the perfect material to stiffen and damp unwanted vibrations. Its high strength to weight ratio lends itself well to speaker design.

Each driver is operated in its "sweet spot". Most full range speakers sacrifice tonality and sound stage by striving to achieve 20 HZ to 20 KHZ response from a single driver.

MINIMUM PHASE

CROSSOVER DESIGN

The low pass crossover is a 2nd order Bessel minimum phase with 1st order high pass to insure optimal time and phase alignment. Sound stage is optimized.

Each driver is operated in its "sweet spot". Most full range speakers sacrifice tonality and sound stage by striving to achieve 20 HZ to 20 KHZ response from a single driver.

BI-WIRE AND BI-AMP CAPABLE CROSSOVER

High quality heavy duty red copper binding posts allow for 3 configuration types: Bi-Wire, Bi-Amp, and single amp with the supplied jumpers.

Each driver is operated in its "sweet spot". Most full range speakers sacrifice tonality and sound stage by striving to achieve 20 HZ to 20 KHZ response from a single driver.

AUDIOPHILE INTERNAL COMPONENTS

Audiophile quality capacitors and coil are utilized in each felt damped crossover to produce truthful timbre. Teflon MIL SPEC single strand silver over copper wiring.

Each driver is operated in its "sweet spot". Most full range speakers sacrifice tonality and sound stage by striving to achieve 20 HZ to 20 KHZ response from a single driver.

HIGH FREQUENCY ATTENUATION RESISTOR

User adjustable high frequencies allow you to tune the speaker to your unique style and room configuration. Supplied with high quality Mundorf or Dale resistors.
