Horn X2 PRO Connection Guide

The Horn X2 PRO connects your amplifier and speakers through its internal crossover — no cabinet modification, no crossover surgery. Just clean signal management inside the unit itself.

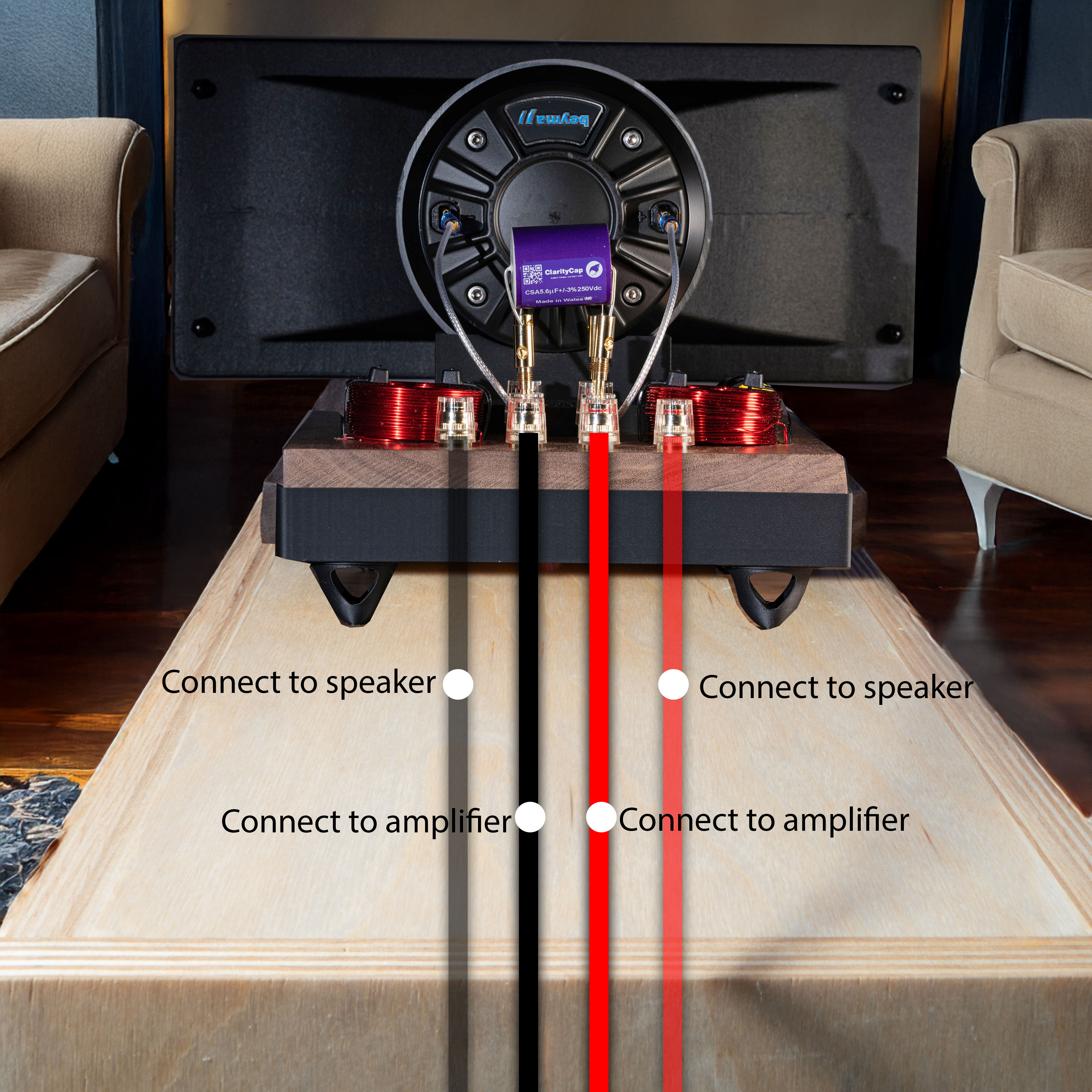

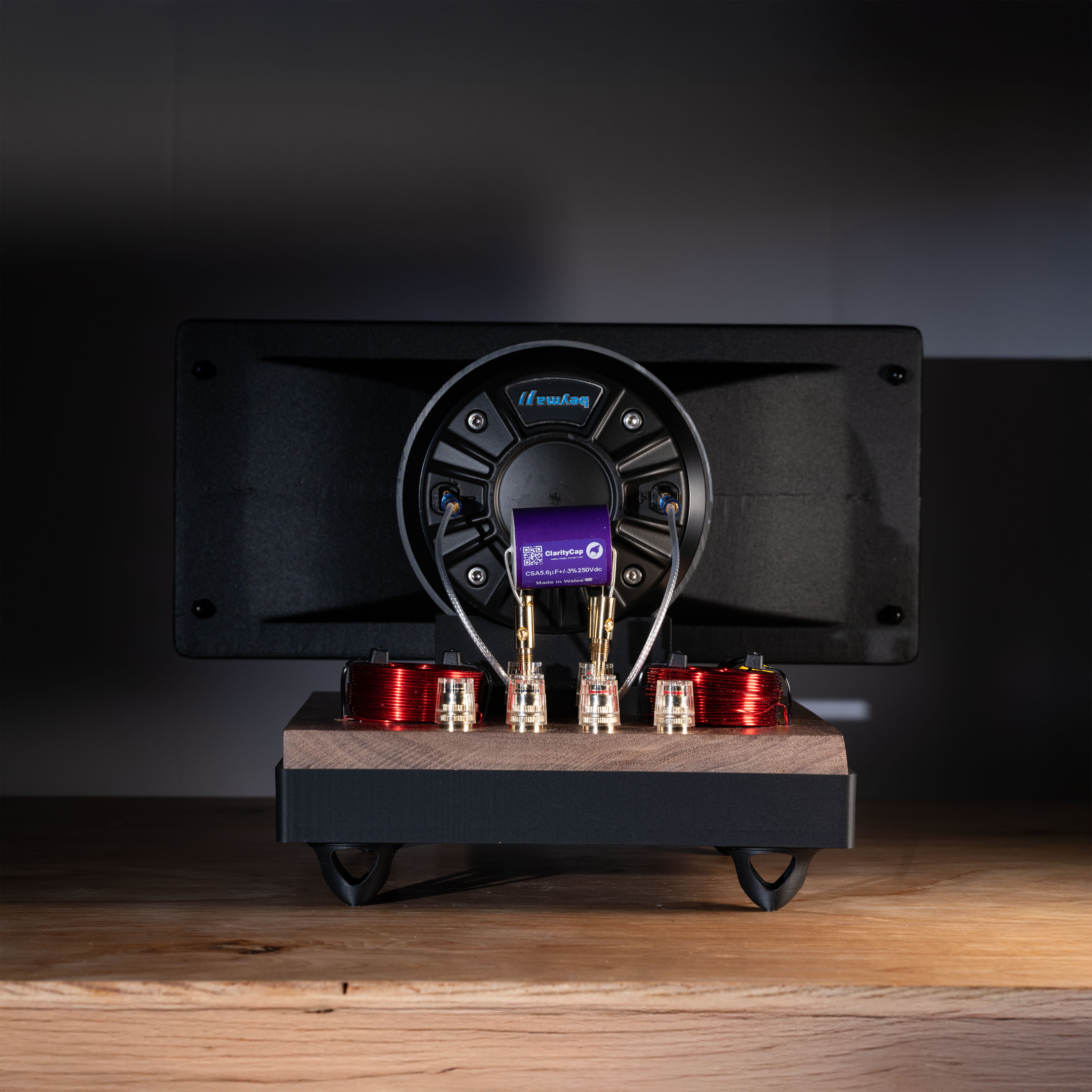

Connection Diagram

The Horn X2 PRO has four rear terminals — the two inner posts connect to your amplifier, and the two outer posts connect to your speakers.

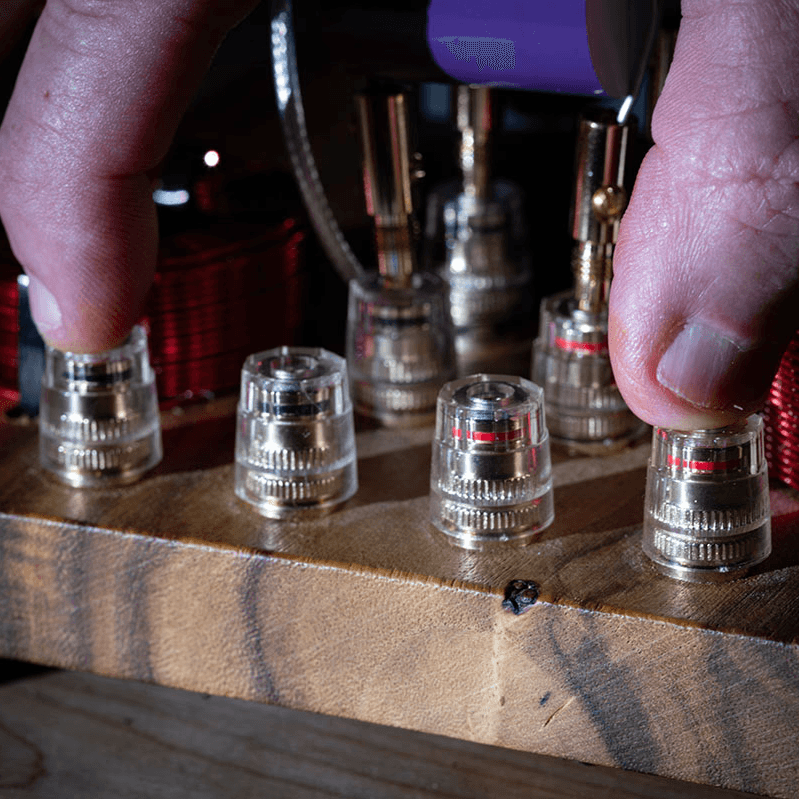

Outer Terminals → Speaker

Connect your speaker or woofer leads here. These outer posts carry only the low-frequency signal — the Horn X2 PRO routes highs to the horn internally.

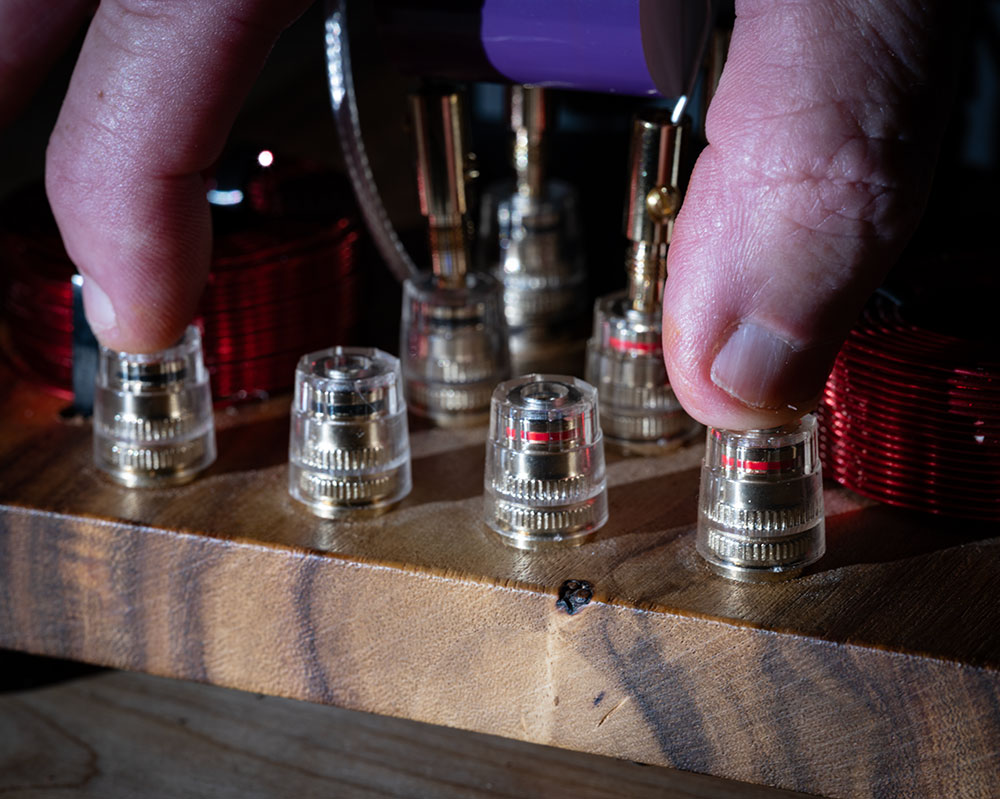

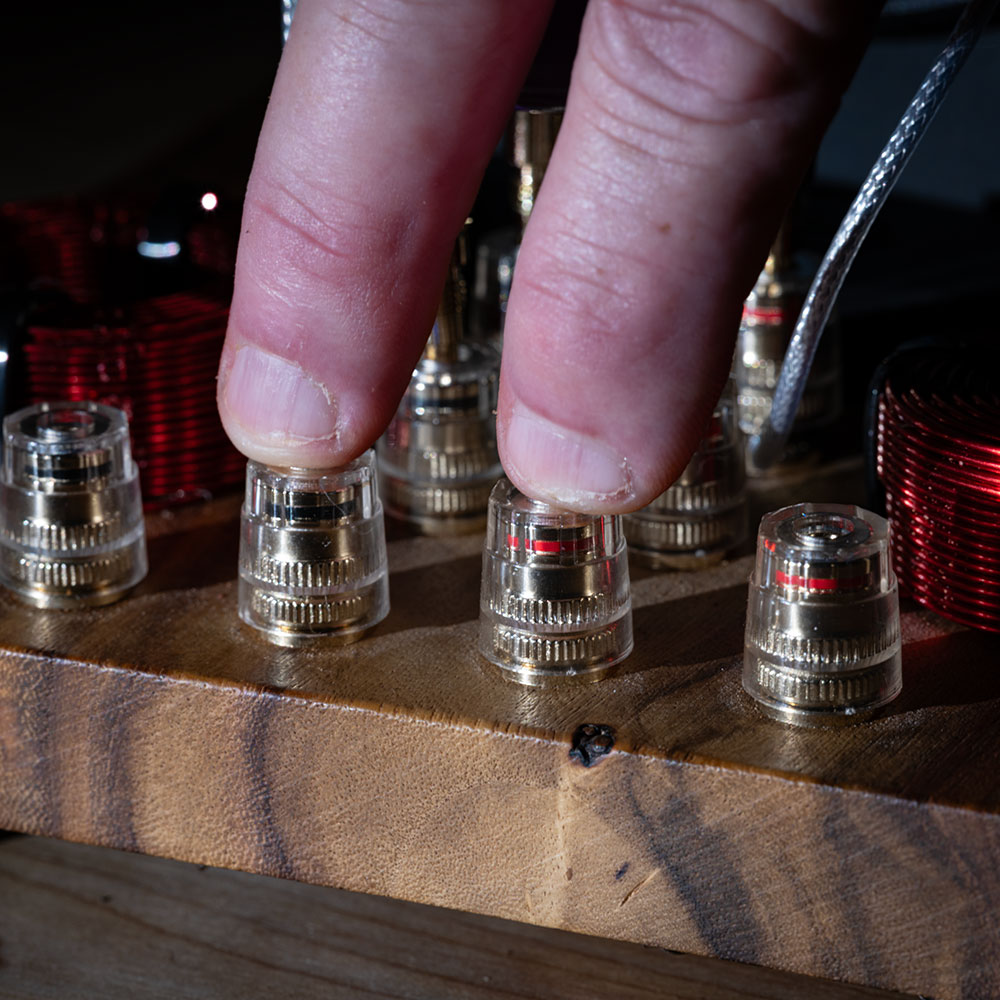

Inner Terminals → Amplifier

Connect your amplifier outputs to the inner posts only. This feeds the full signal into the Horn X2 PRO — which splits it internally into highs for the horn and lows for your speaker.

Do not connect your amplifier directly to the speaker. Connect it only to the Horn X2 PRO’s inner terminals. Signal splitting occurs inside the Horn X2 PRO — lows to your speaker, highs to the horn.
