Hiro Speaker Builder Series

Reproduce the Hiro Speaker

The Hiro Speaker Builder Series is intended for builders who wish to reproduce the performance, alignment, and design objectives of the Hiro Speaker through the use of the supplied Hiro Acoustic Engine and published enclosure documentation.

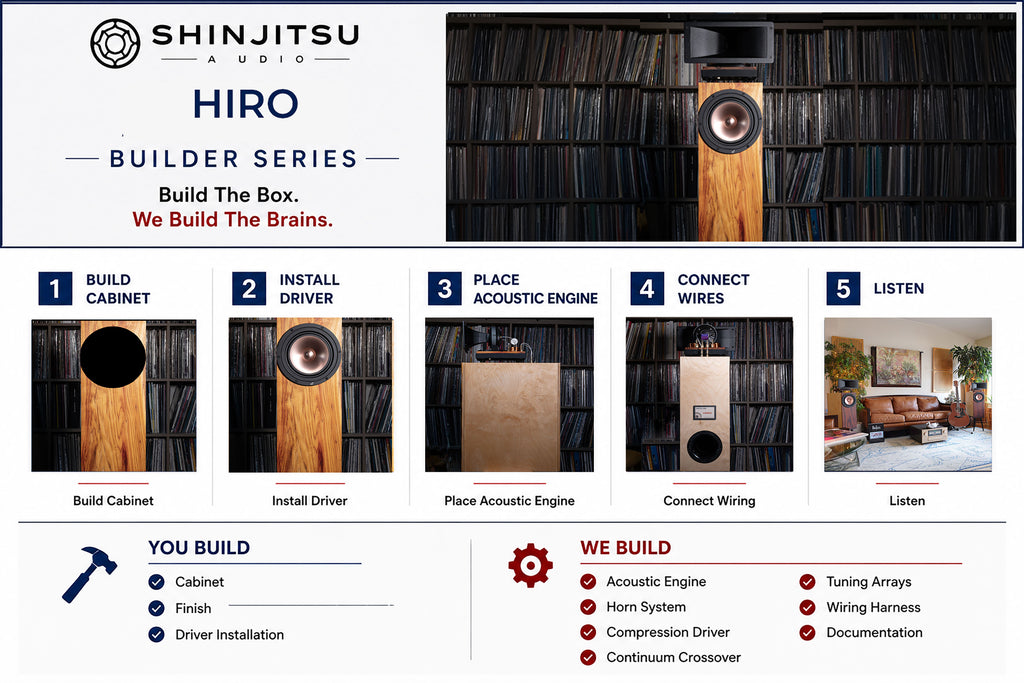

The Hiro Speaker Builder Series provides the engineered portion of the loudspeaker including the horn structure, crossover architecture, tuning system, external wiring, and published enclosure documentation.

Builders supply the enclosure, Mark Audio MA200M driver, damping materials, finishing materials, and assembly labor.

When constructed according to the published documentation, builders can expect performance closely aligned with the Hiro Speaker.

The Hiro Acoustic Engine

The Hiro Acoustic Engine combines the horn structure, compression driver, crossover architecture, and Continuum Tuning System into a single pre-assembled and tested package.

Every Acoustic Engine is assembled, tested, and inspected prior to shipment.

Included

• Complete Hiro Acoustic Engine assembly
• B&C ME45 precision horn
• Beyma CD17FE/PK compression driver installed and tested
• External crossover network
• Jantzen Audio Standard capacitors
• Continuum Capacitor Array
• Continuum Resistor Array
• External jumper wiring between horn and enclosure
• Published enclosure documentation
• Port dimensions and tuning specifications
• Wiring documentation
• Measured performance data
• Support for the published design
• Serialized Builder Series identification badge

Builder Supplied Components

• Mark Audio MA200M wide-range driver
• Cabinet materials
• Port materials
• Internal damping materials
• Finishing materials
• Assembly labor
• Face wood of choice

The Mark Audio MA200M driver is intentionally builder supplied, allowing builders to source the driver directly from their preferred supplier.

Reference Performance Specifications

System Type
2-way horn loudspeaker

High Frequency
Hiro Acoustic Engine
B&C ME45 horn
Beyma CD17FE/PK compression driver

Low Frequency
Mark Audio MA200M

Reference Enclosure
44L vented enclosure

Frequency Response
~34 Hz – 20 kHz

Sensitivity
~90 dB

Impedance
8 ohms nominal

Measured Performance Data

Published measurements are based upon the specified Mark Audio MA200M driver, published enclosure design, recommended port tuning, and reference resistor value.

Measurement data is included with the Builder Series documentation package.

Builder Series Identification

Each Builder Series package includes a serialized Builder Series identification badge.

The badge identifies the completed loudspeaker as an official Hiro Builder Series product constructed from published Shinjitsu Audio documentation and distinguishes it from factory-built Reference Series loudspeakers.

Support Policy

Support is provided for loudspeakers constructed according to the published design.

Alternative drivers, enclosure volumes, port dimensions, crossover modifications, or custom cabinet designs may alter performance and fall outside the scope of Builder Series support.

Designed and Built in Arizona, USA

Every Hiro Acoustic Engine is individually assembled, tested, and inspected prior to shipment.

```
