Build Reservation & Production Queue

The Atom Speaker Builder Series is custom crafted to order. Your 50% Build Reservation secures your position in the Shinjitsu Audio production queue and reserves future production capacity for your Builder Series package.

When your reserved production slot reaches the front of the queue, you will receive a final invoice for the remaining balance. Production begins only after final payment has been received.

• Your Build Slot Becomes Available: When your reserved production slot reaches the front of the queue, we will notify you and email your final invoice for the remaining balance. Payment is due within 7 business days so we can immediately secure components and keep production moving.
• Need Additional Time? If an unexpected life event occurs and you need to delay production, simply let us know within that 7-day window. We will gladly move your Build Reservation to a future production slot when you are ready. As long as communication remains open, you do not lose your reservation.
• Materials Order: Premium components, horns, compression drivers, and crossover materials are not ordered from suppliers until the final balance has been paid in full.
• Silent/Abandoned Orders: If we reach out when your slot becomes available and receive no response or communication within 14 calendar days, the production slot will be forfeited to the next customer in line and the Build Reservation will be retained as a non-refundable scheduling and administrative fee.

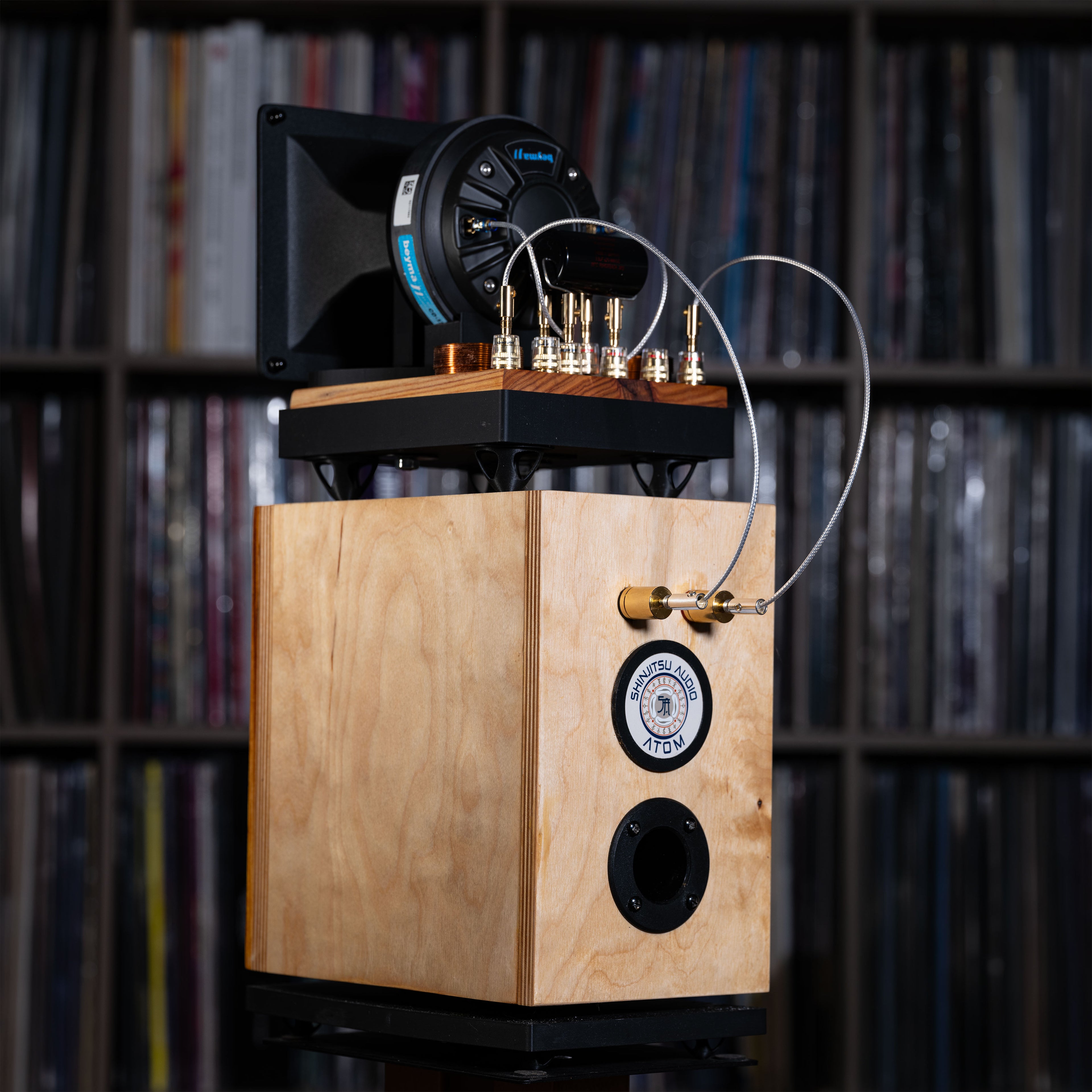

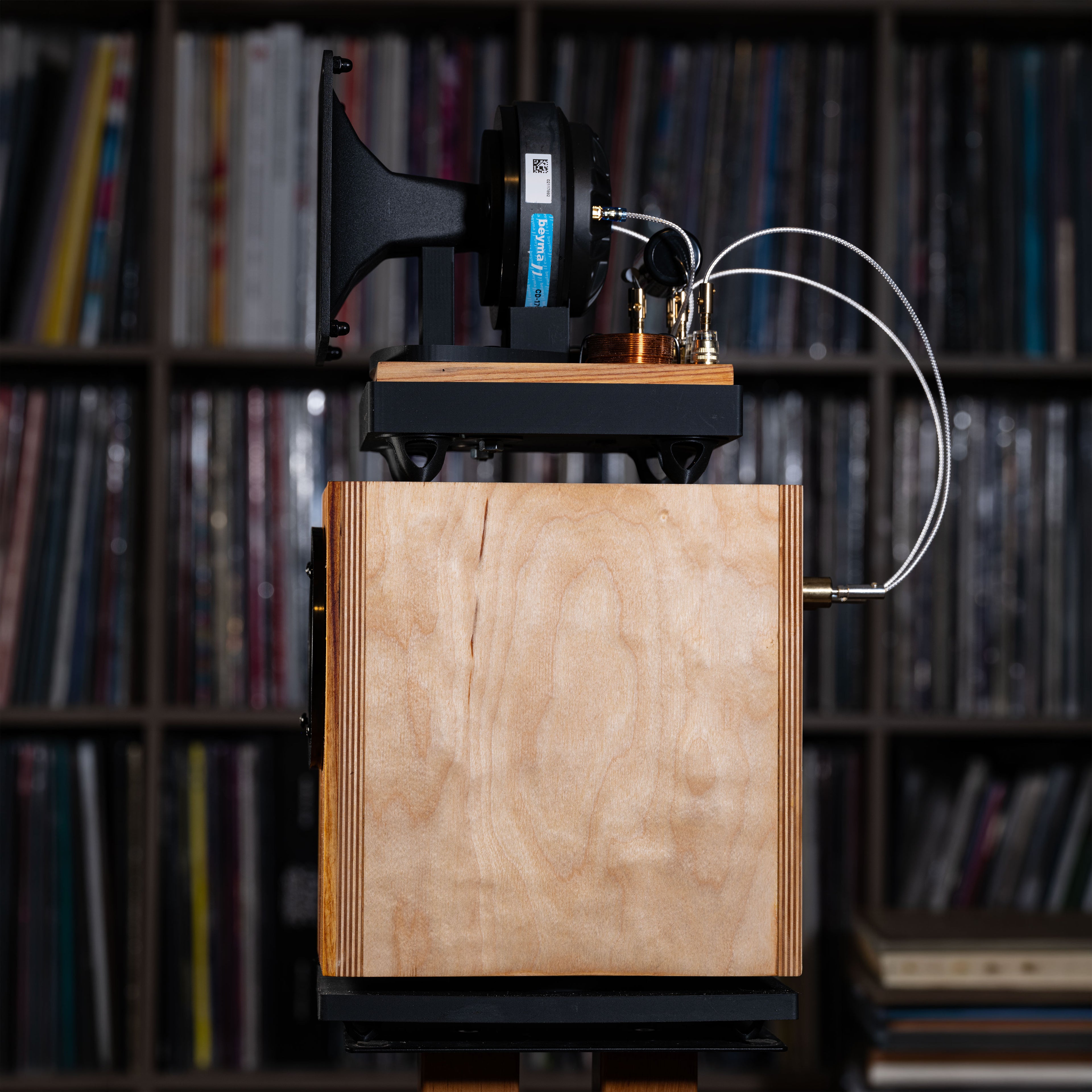

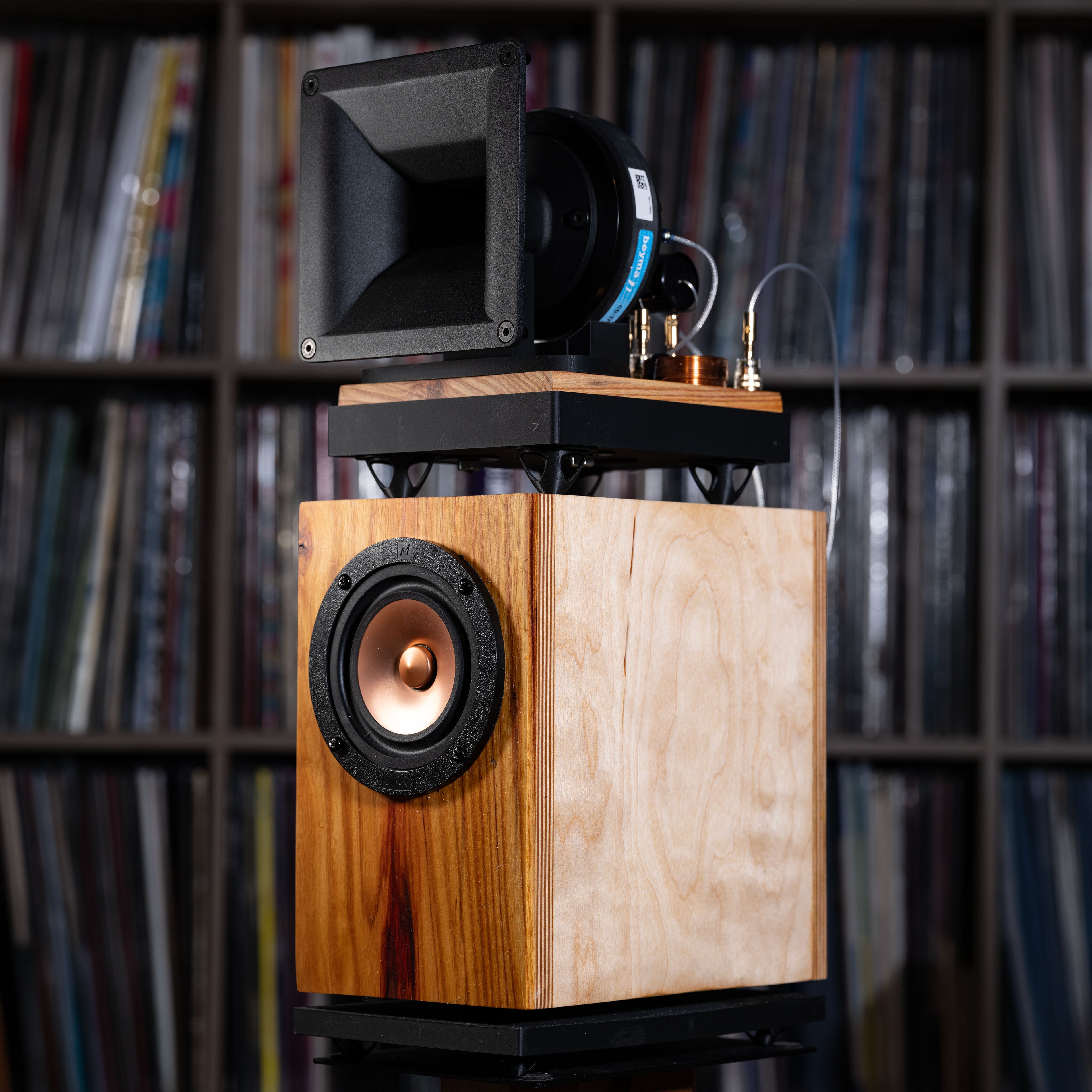

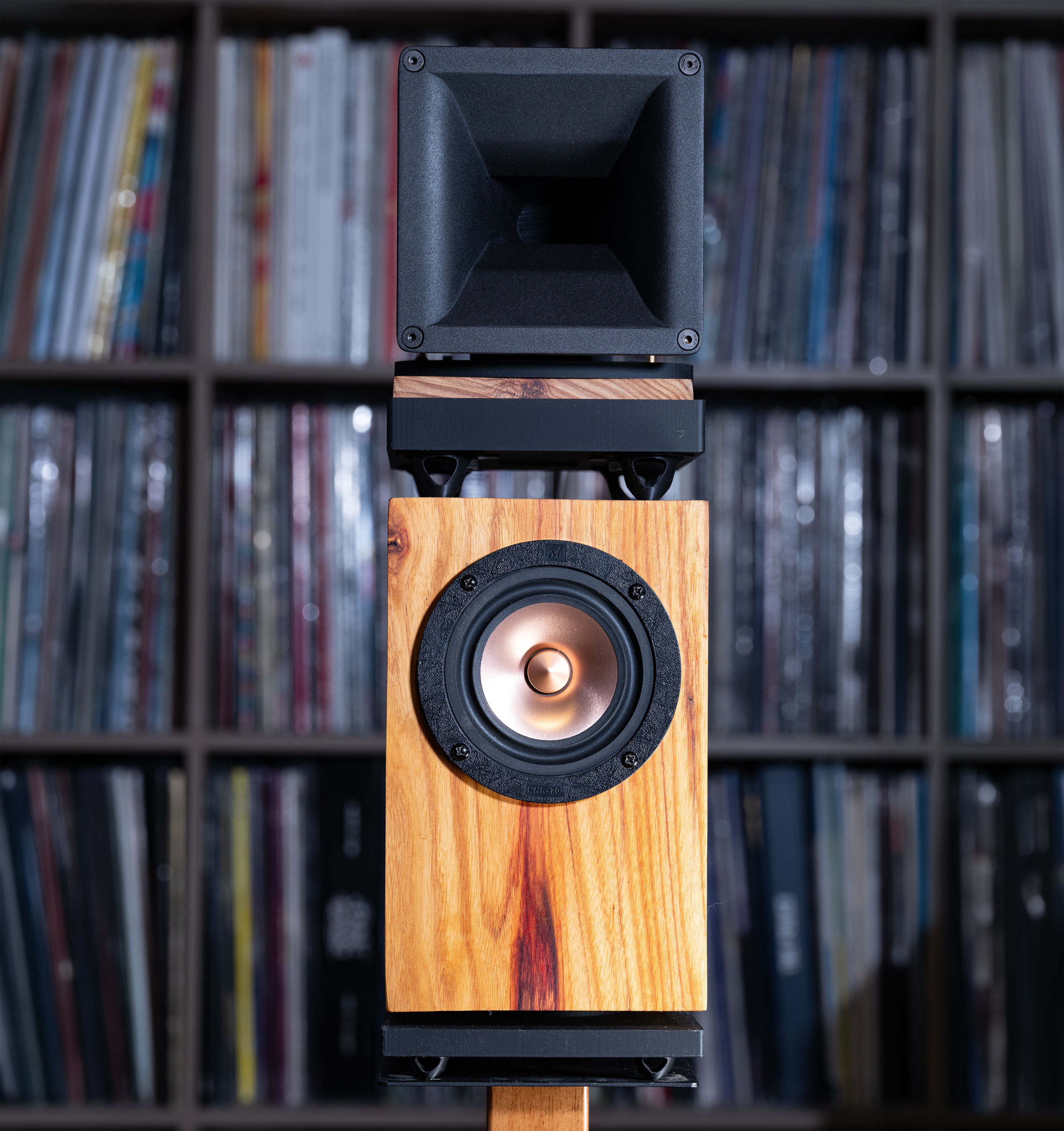

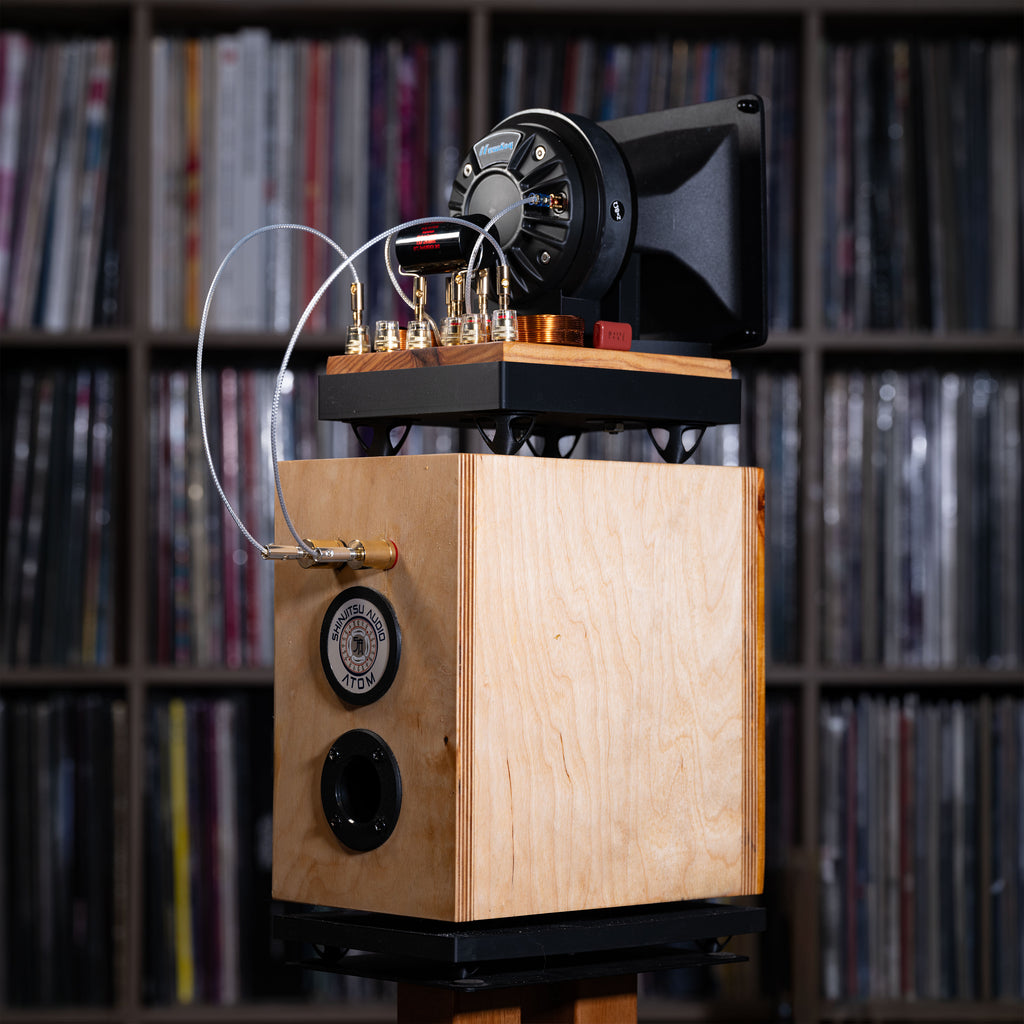

Atom Speaker Builder Series

Reproduce the Atom Speaker

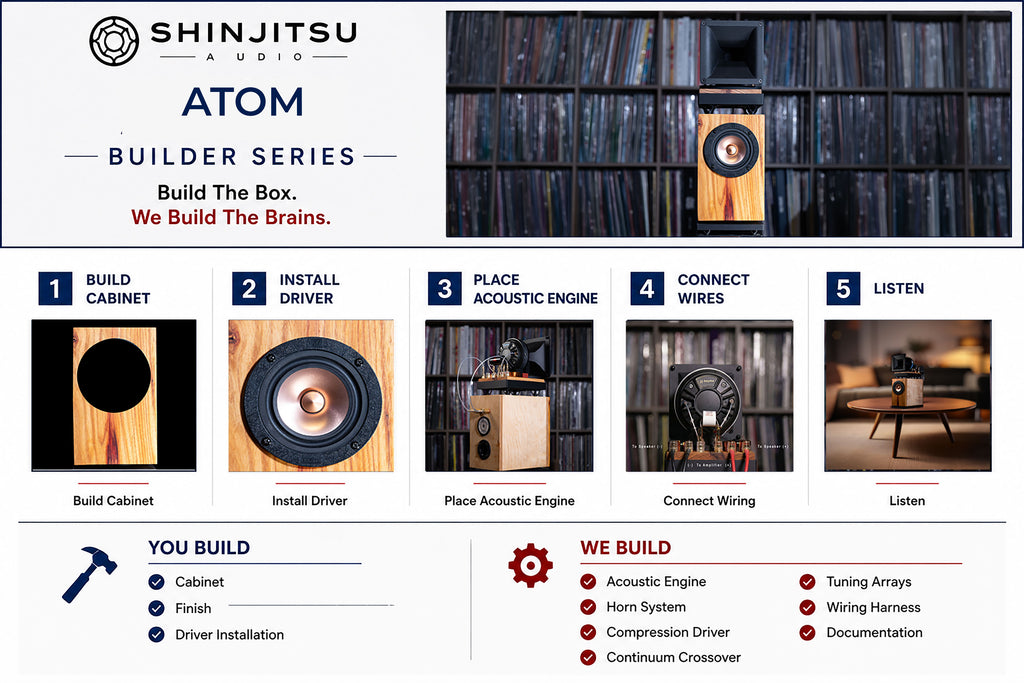

The Atom Speaker Builder Series is intended for builders who wish to reproduce the performance, alignment, and design objectives of the Atom Speaker through the use of the supplied Atom Acoustic Engine and published enclosure documentation.

The Atom Speaker Builder Series provides the engineered portion of the loudspeaker including the horn structure, crossover architecture, tuning system, external wiring, and published enclosure documentation.

Builders supply the enclosure, Mark Audio CHR70 driver, damping materials, finishing materials, and assembly labor.

When constructed according to the published documentation, builders can expect performance closely aligned with the Atom Speaker.

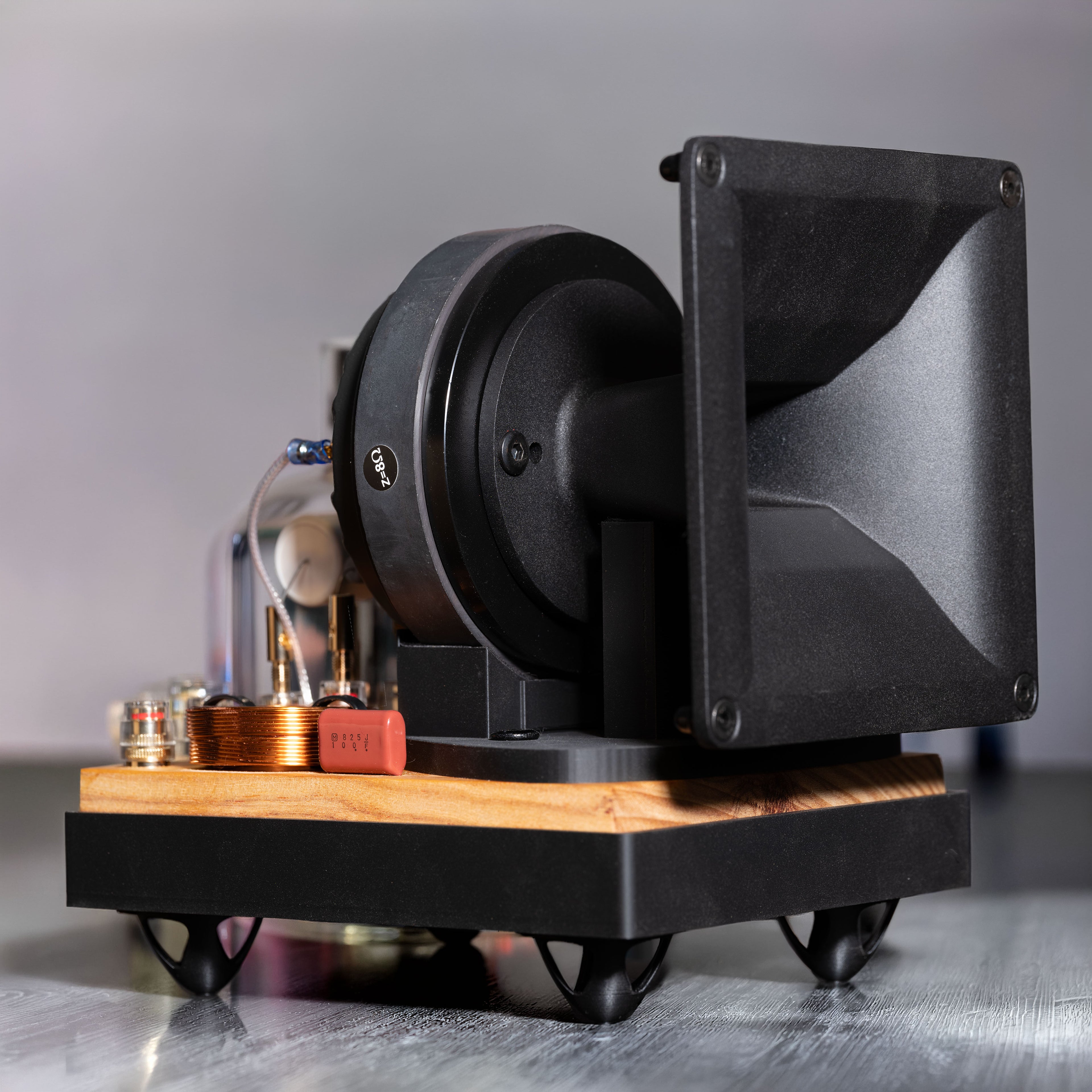

The Atom Acoustic Engine

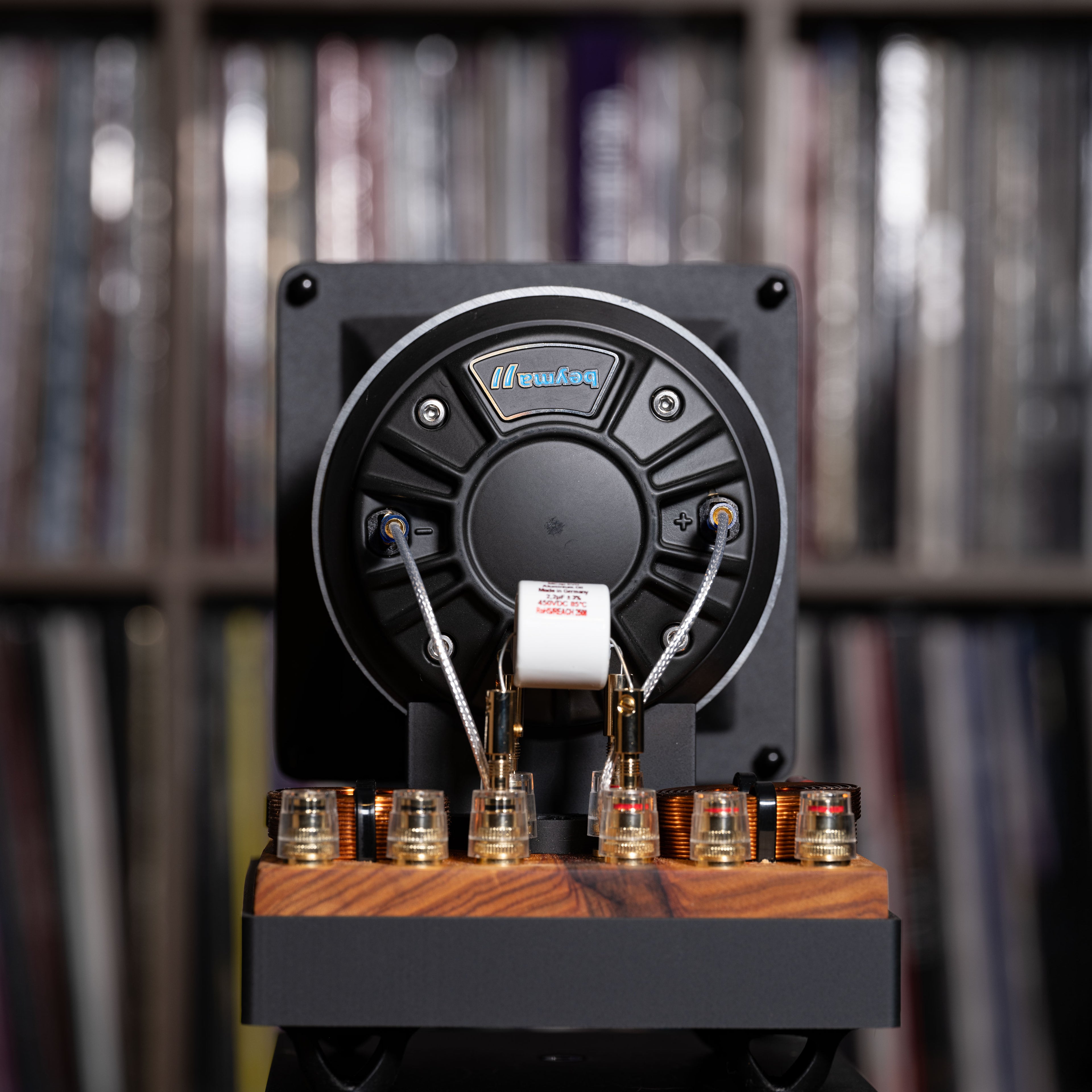

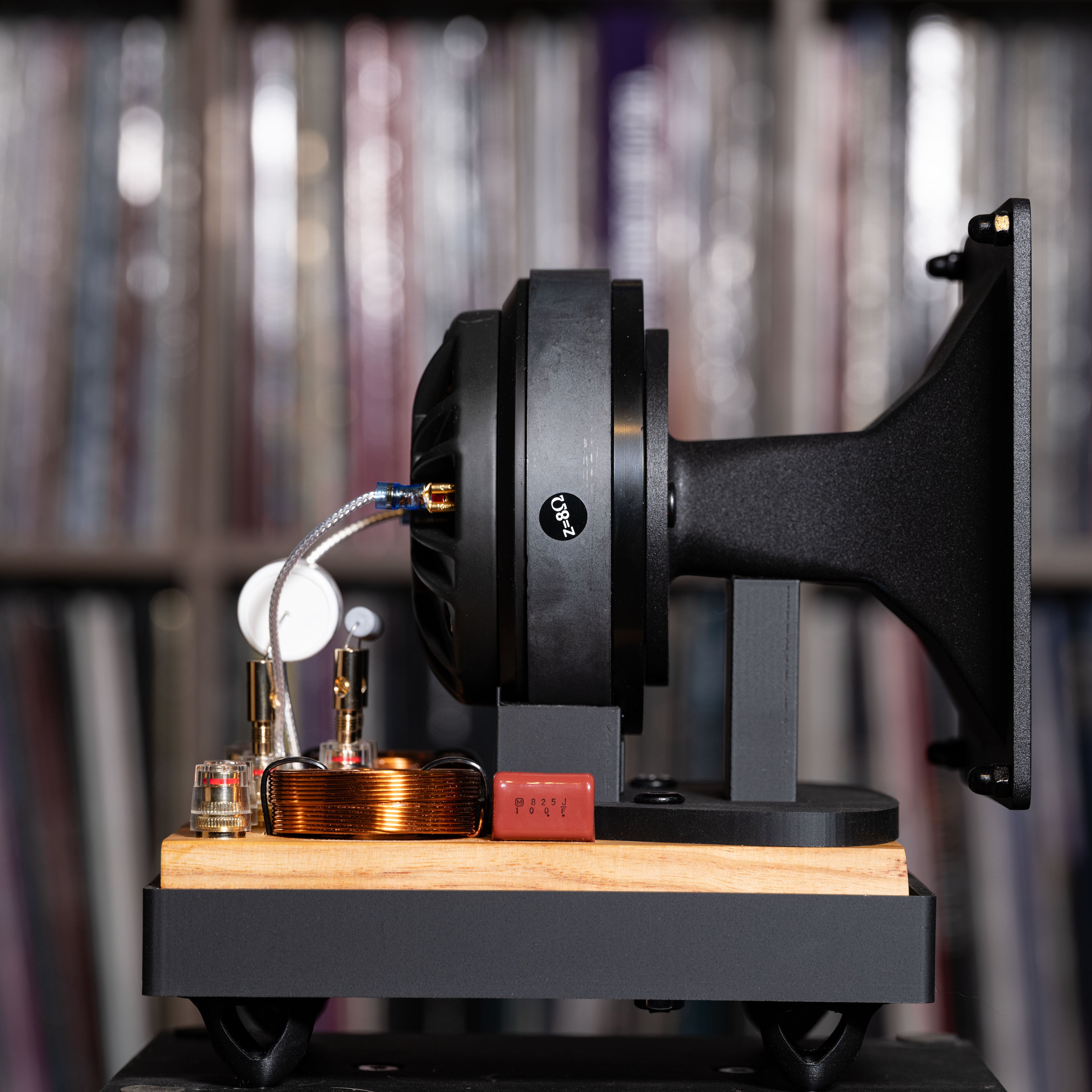

The Atom Acoustic Engine combines the horn structure, compression driver, crossover architecture, and Continuum Tuning System into a single pre-assembled and tested package.

Every Acoustic Engine is assembled, tested, and inspected prior to shipment.

Included

• Complete Atom Acoustic Engine assembly
• B&C ME20 precision horn
• Beyma CD17FE/PK compression driver installed and tested
• External crossover network
• Jantzen Audio Standard capacitors
• Continuum Capacitor Array
• Continuum Resistor Array
• External jumper wiring between horn and enclosure
• Published enclosure documentation
• Port dimensions and tuning specifications
• Wiring documentation
• Measured performance data
• Support for the published design
• Serialized Builder Series identification badge

Builder Supplied Components

• Mark Audio CHR70 Gen 3 wide-range driver
• Cabinet materials
• Port materials
• Internal damping materials
• Finishing materials
• Face wood of choice
• Assembly labor

The Mark Audio CHR70 driver is intentionally builder supplied, allowing builders to source the driver directly from their preferred supplier.

Continuum Capacitor Array

Three selectable capacitor values allow adjustment of crossover behavior and overall presentation.

• Prominent mids
• Neutral balance
• Relaxed mids

Builders may select the presentation that best complements their room, electronics, and listening preferences.

Continuum Resistor Array

Each Acoustic Engine includes the resistor value used during development and measurement of the published design.

Additional resistor values are supplied to allow fine adjustment of horn level and overall presentation.

• Reference resistor value used for published measurements
• Additional resistor values for system matching
• Bold presentation options
• Neutral presentation options
• Relaxed presentation options

The supplied resistor assortment covers the overwhelming majority of installations. Builders wishing to experiment further may source additional non-inductive resistor values independently.

Published Design Documentation

The supplied documentation includes the enclosure design used during development and measurement of the Atom Speaker.

• Cabinet dimensions
• Driver placement
• Port specifications
• Recommended materials
• Wiring information
• Assembly guidance

Reference Performance Specifications

System Type
2-way horn loudspeaker

High Frequency
Atom Acoustic Engine
B&C ME20 horn
Beyma CD17FE/PK compression driver

Low Frequency
Mark Audio CHR70 Gen 3

Reference Enclosure
4L vented enclosure

Frequency Response
~65 Hz – 20 kHz

Sensitivity
~85 dB

Impedance
8 ohms nominal

Measured Performance Data

Published measurements are based upon the specified Mark Audio CHR70 driver, published enclosure design, recommended port tuning, and reference resistor value.

Measurement data is included with the Builder Series documentation package.

Builder Series Identification

Each Builder Series package includes a serialized Builder Series identification badge.

The badge identifies the completed loudspeaker as an official Atom Builder Series product constructed from published Shinjitsu Audio documentation and distinguishes it from factory-built Reference Series loudspeakers.

Support Policy

Support is provided for loudspeakers constructed according to the published design.

Alternative drivers, enclosure volumes, port dimensions, crossover modifications, or custom cabinet designs may alter performance and fall outside the scope of Builder Series support.

Designed and Built in Arizona, USA

Every Atom Acoustic Engine is individually assembled, tested, and inspected prior to shipment.
