HORN X2 HORN ENGINE PAIR

Handcrafted to Order

Every Horn X2 Horn Engine Pair is individually handcrafted, assembled, voiced, tested, and carefully packaged before shipment.

Estimated Build Time: 4–6 weeks

Production begins after final payment is received.

Two-Way Horn Platform

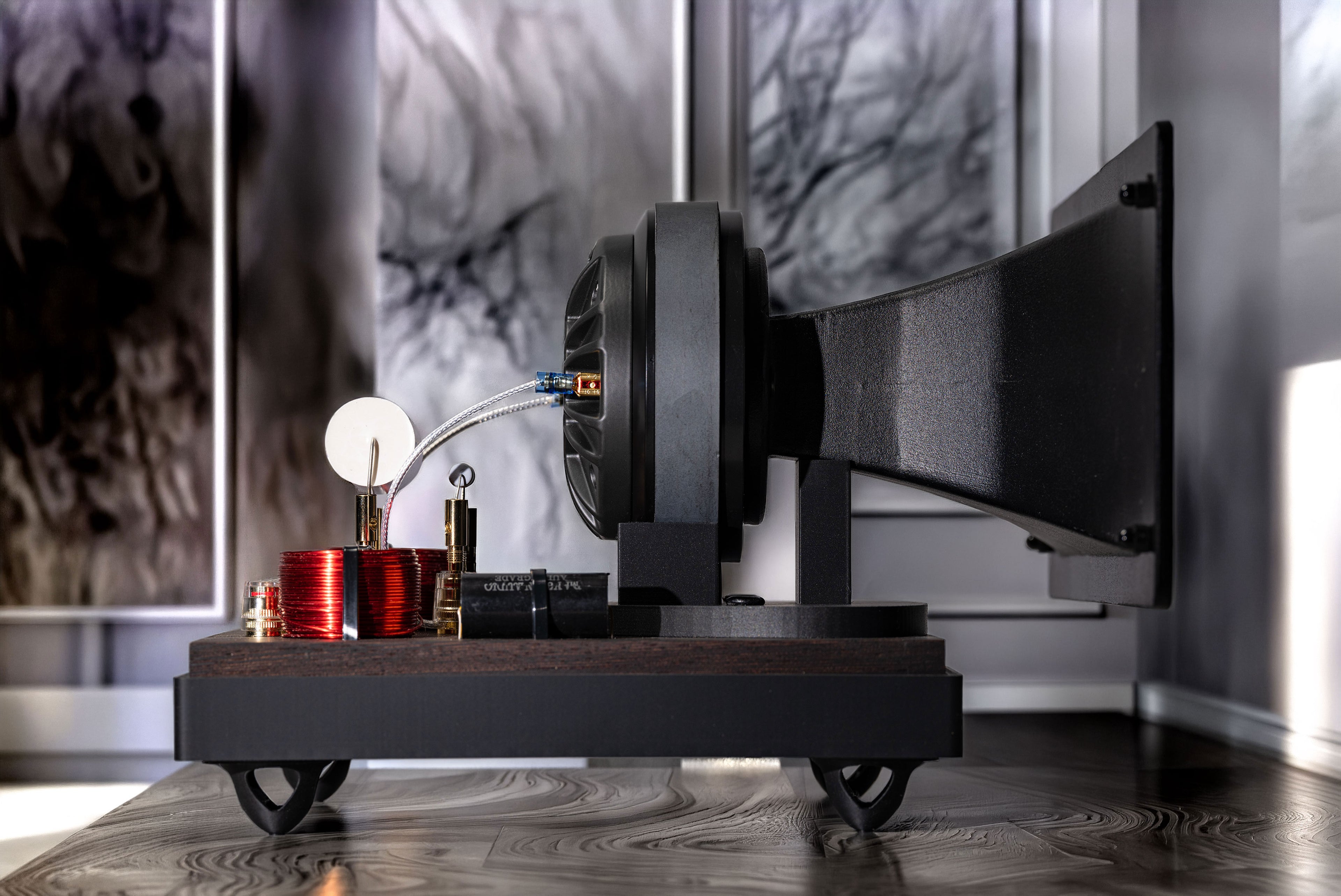

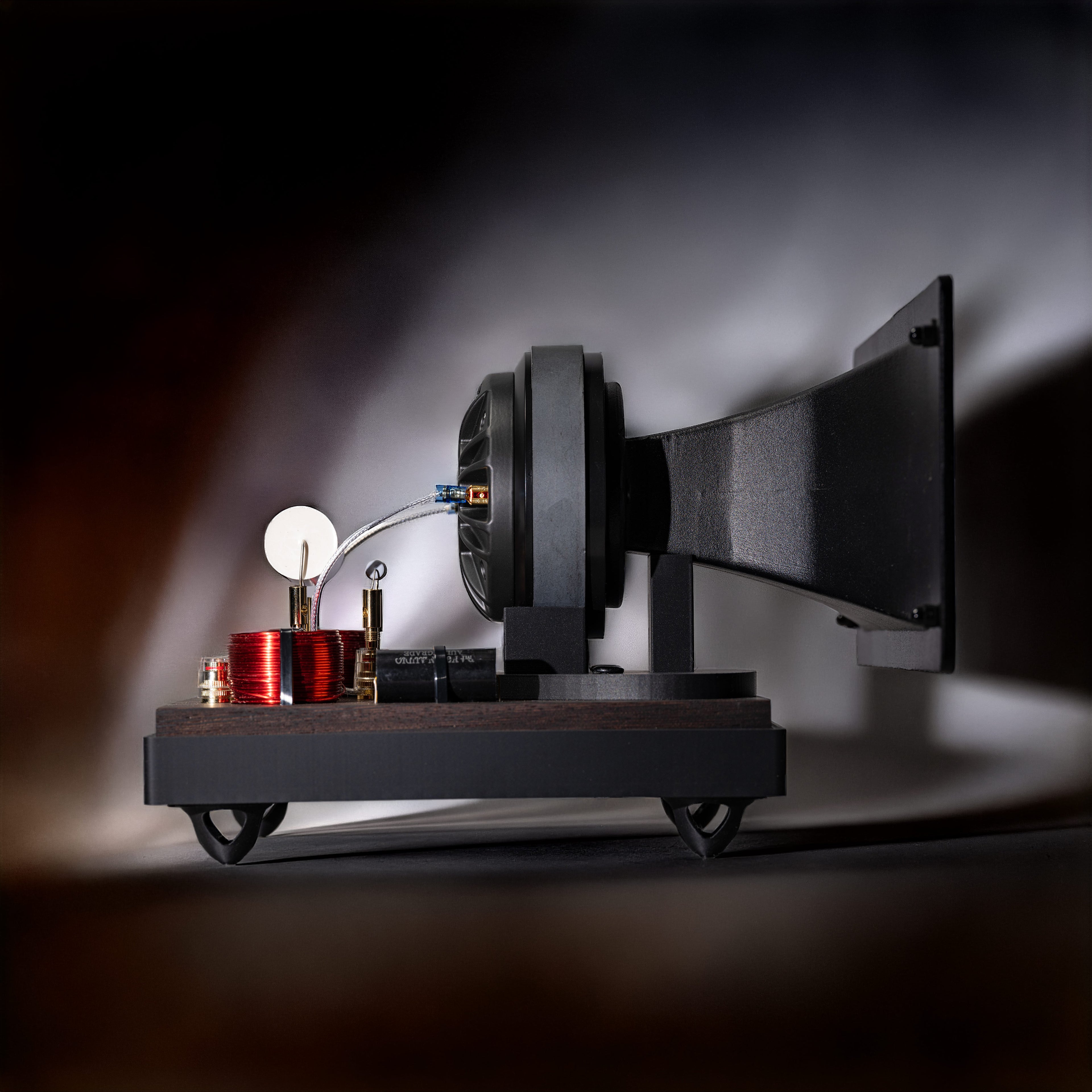

The Horn X2 Horn Engine Pair is a complete external horn platform designed to transform compatible loudspeaker systems into highly coherent, high-efficiency two-way designs.

Built around the Beyma CD171Fe-PK compression driver, ME45 constant-directivity horn, and the proprietary Continuum™ Crossover Architecture, it delivers exceptional clarity, effortless dynamics, precise imaging, and natural tonal balance.

The external hardwood plinth isolates the horn and crossover from cabinet vibration and internal pressure, allowing the system to perform with maximum consistency.

Continuum™ Tuning Array

Every Horn X2 Horn Engine Pair includes user-adjustable capacitor and resistor tuning arrays, allowing the system to be optimized for:

• Room acoustics

• Amplifier character

• Woofer sensitivity

• Personal listening preference

Adjust the presentation from Bold to Neutral, Relaxed, Reserved, or Whisper with simple tuning changes.

What's Included

• Pair of Horn X2 Horn Engines

• Beyma CD171Fe-PK compression drivers

• ME45 horns

• External Continuum™ crossover assemblies

• Capacitor tuning array

• Resistor tuning array

• Woofer-specific resistor recommendations

• Product Care & Assembly Guide

Important Information

The Horn X2 Horn Engine Pair is a standalone horn platform designed for integration into your own loudspeaker project.

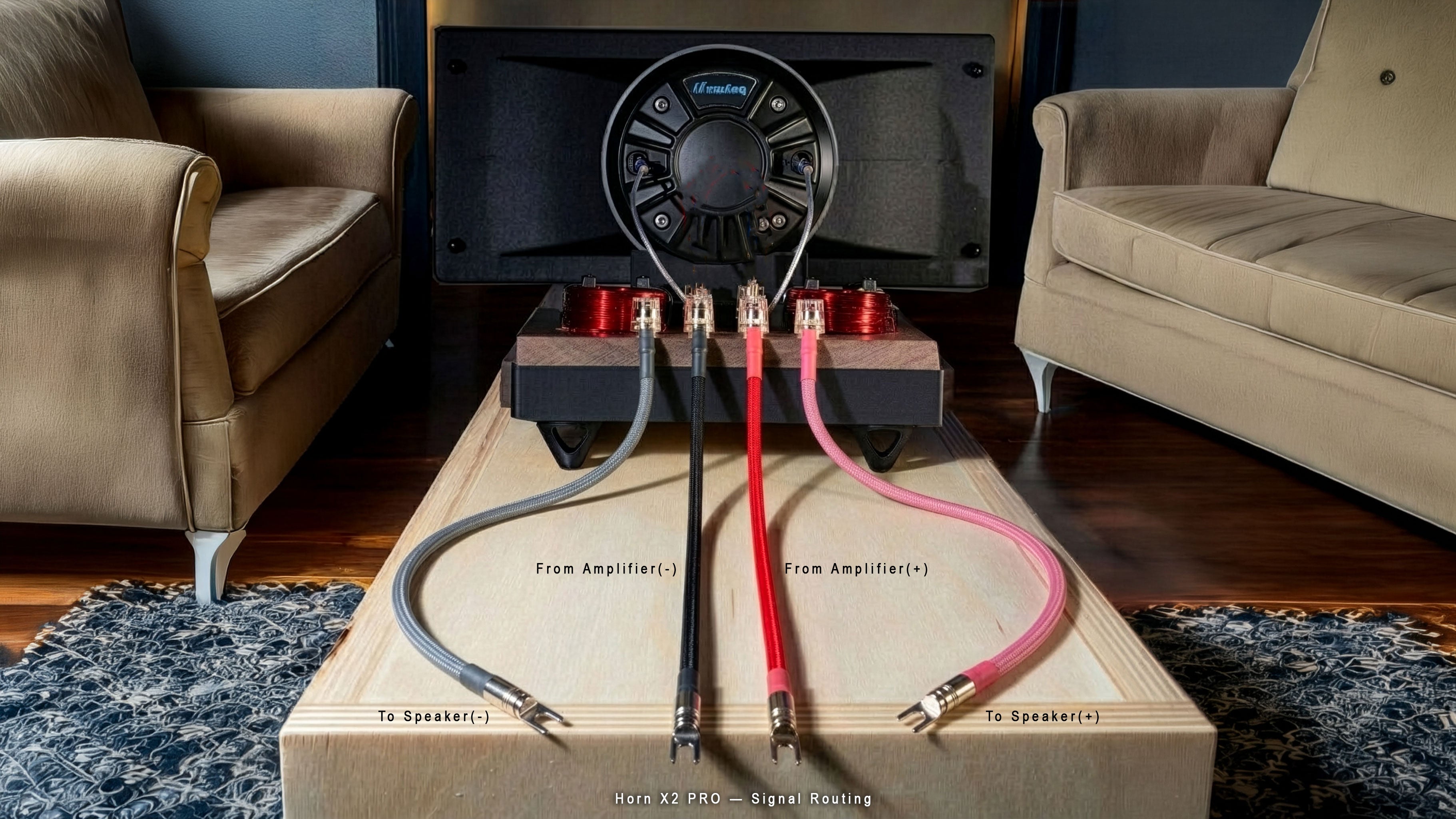

It includes the information necessary to integrate the horn with your selected woofer, including recommended resistor values.

Cabinet plans, enclosure dimensions, internal volume, port specifications, crossover schematics, bracing layouts, damping methods, and other proprietary design information used in Shinjitsu Audio production loudspeakers are not included or provided.

The Horn X2 Horn Engine Pair is not sold as a speaker kit or blueprint for reproducing a Shinjitsu Audio production loudspeaker.

Technical Highlights

• Beyma CD171Fe-PK compression driver

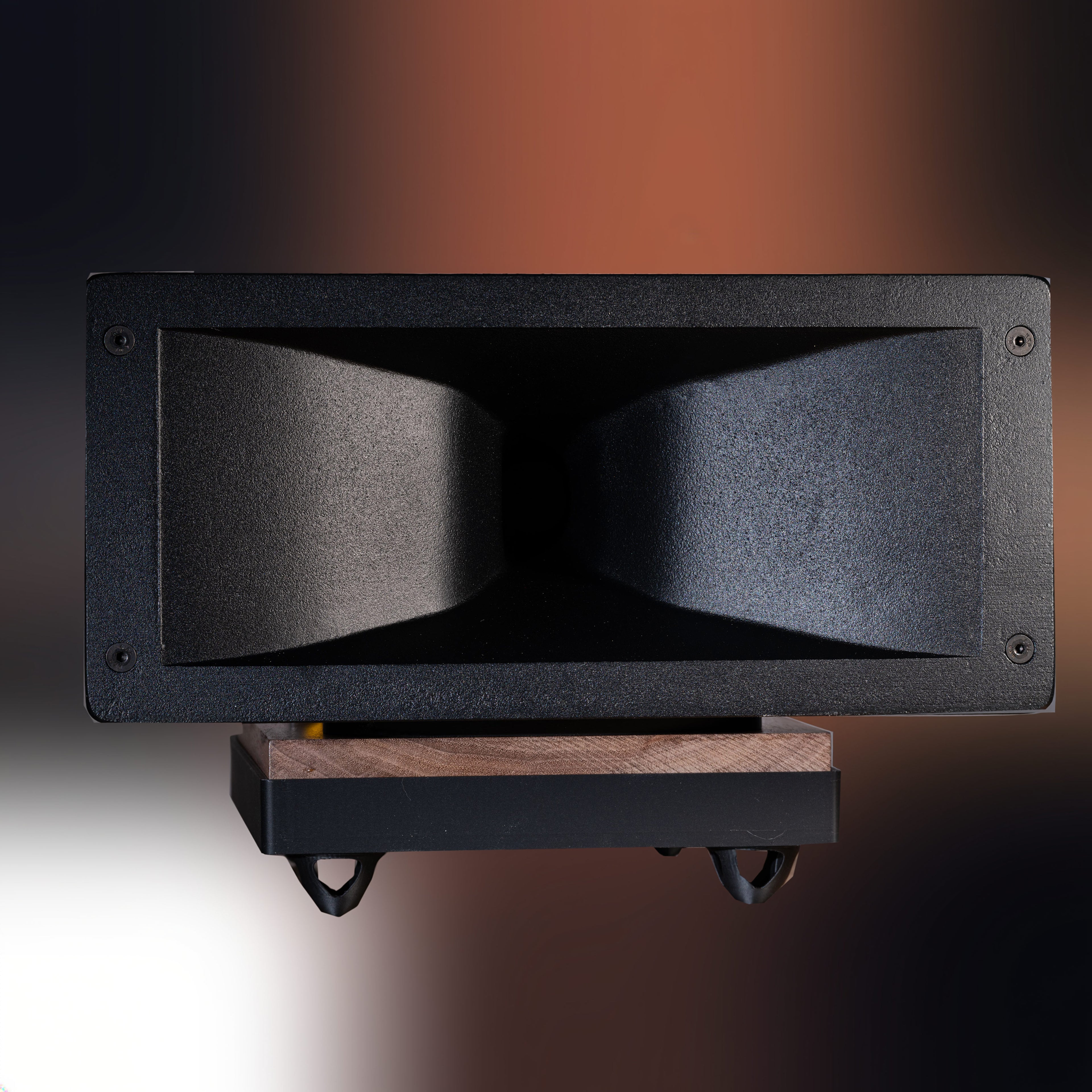

• ME45 constant-directivity horn

• External hardwood horn platform

• Continuum™ crossover architecture

• User-adjustable capacitor tuning

• User-adjustable resistor tuning

• Designed for compatible 8"–15" woofer systems



• Specifications:
  Height -12  inches
  Width - 12 inches
  Depth - 14 inches
  Horn type -ME 45 / 12 inch horn
  Compression Driver - Cd171 FE/PK Beyma
  Frequency response - 1500 Hz to 20 kHz

Shipping

Flat-rate shipping: $99 (Continental U.S.)

To minimize the possibility of shipping damage, the Horn X2 Horn Engine Pair is shipped partially assembled. Final assembly typically requires only a few minutes.

A printed Product Care & Assembly Guide is included with every Horn X2 Horn Engine Pair.

Speaker cables are not included.
