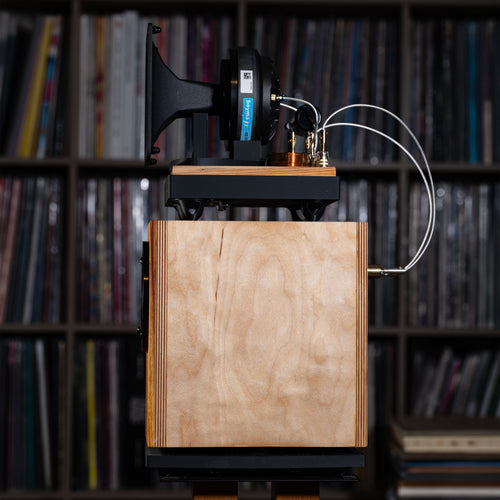

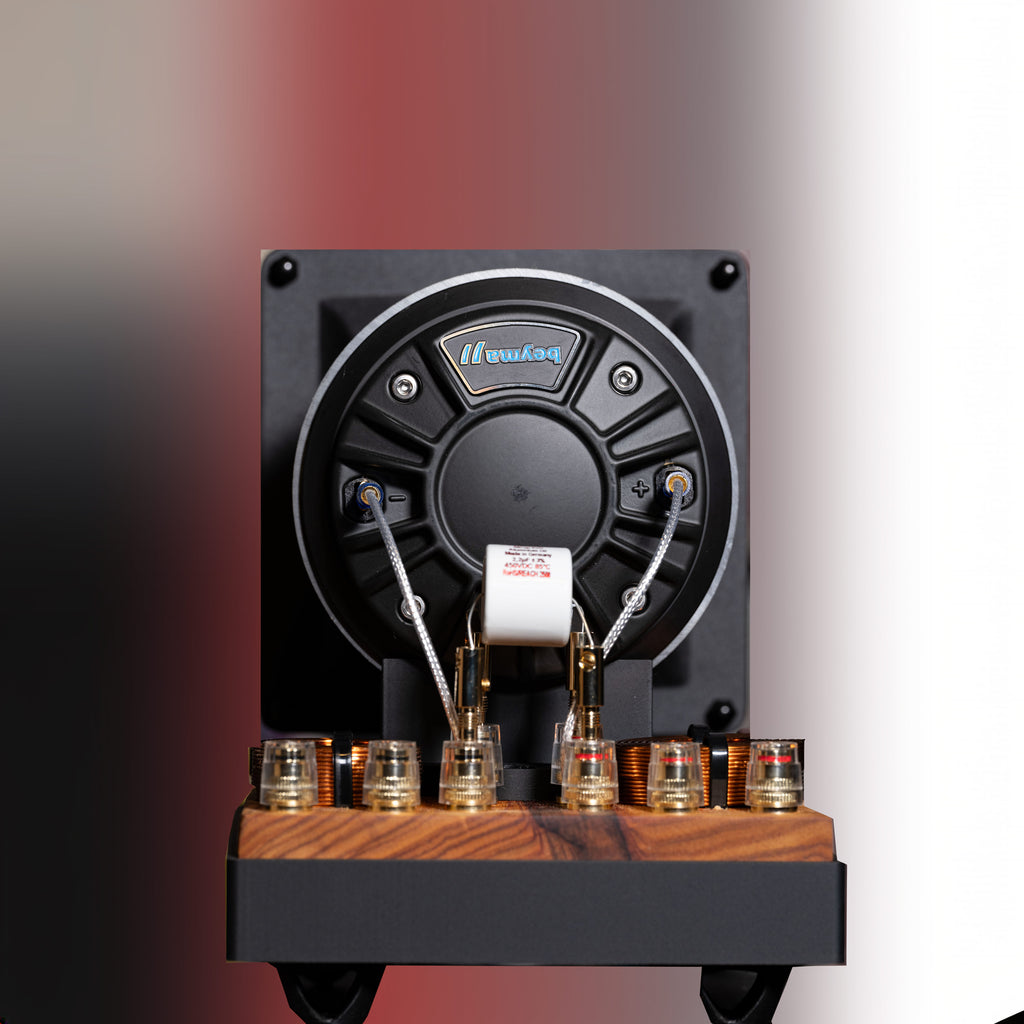

ATOM HORN ENGINE PAIR

Handcrafted to Order

Every Atom Horn Engine Pair is individually handcrafted, assembled, voiced, tested, and carefully packaged before shipment.

Estimated Build Time: 4–6 weeks

Compact Horn Platform

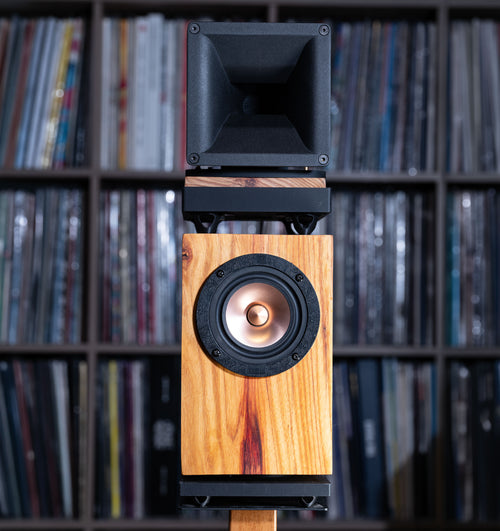

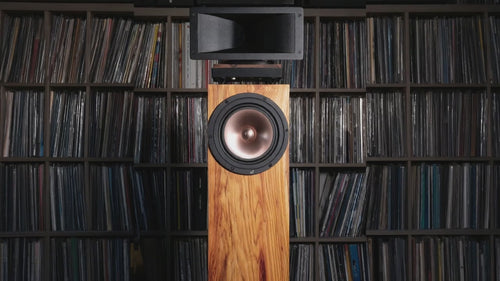

The Atom Horn Engine Pair is a complete external horn platform designed for compact, high-performance loudspeaker systems where coherence, dynamics, and natural tonal balance are the priorities.

Built around a carefully matched compression driver, horn, and the proprietary Continuum™ Crossover Architectur eusing a scaled down Horn X2 platform, the Atom Horn Engine delivers exceptional clarity, imaging, and effortless musical presentation from a remarkably compact platform.

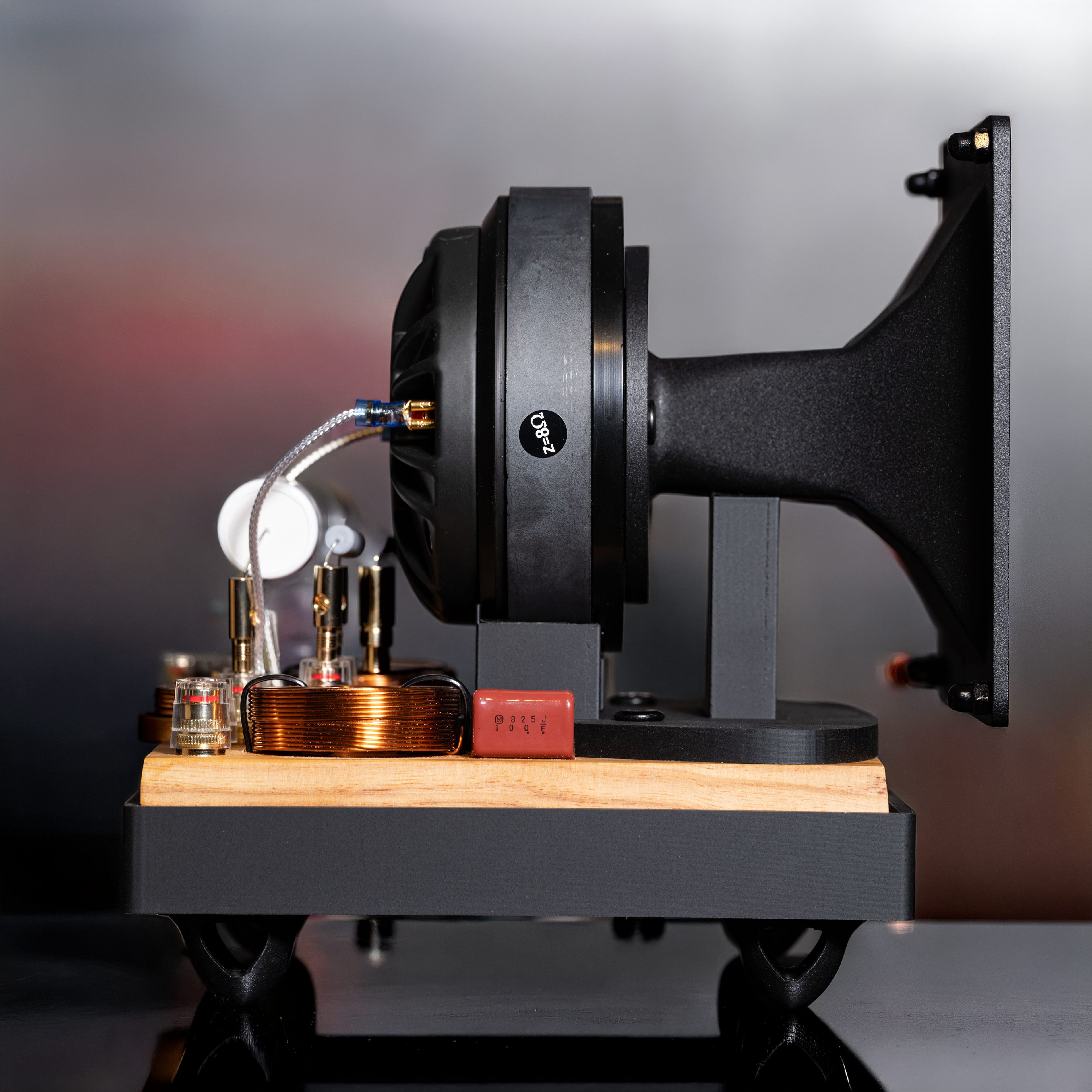

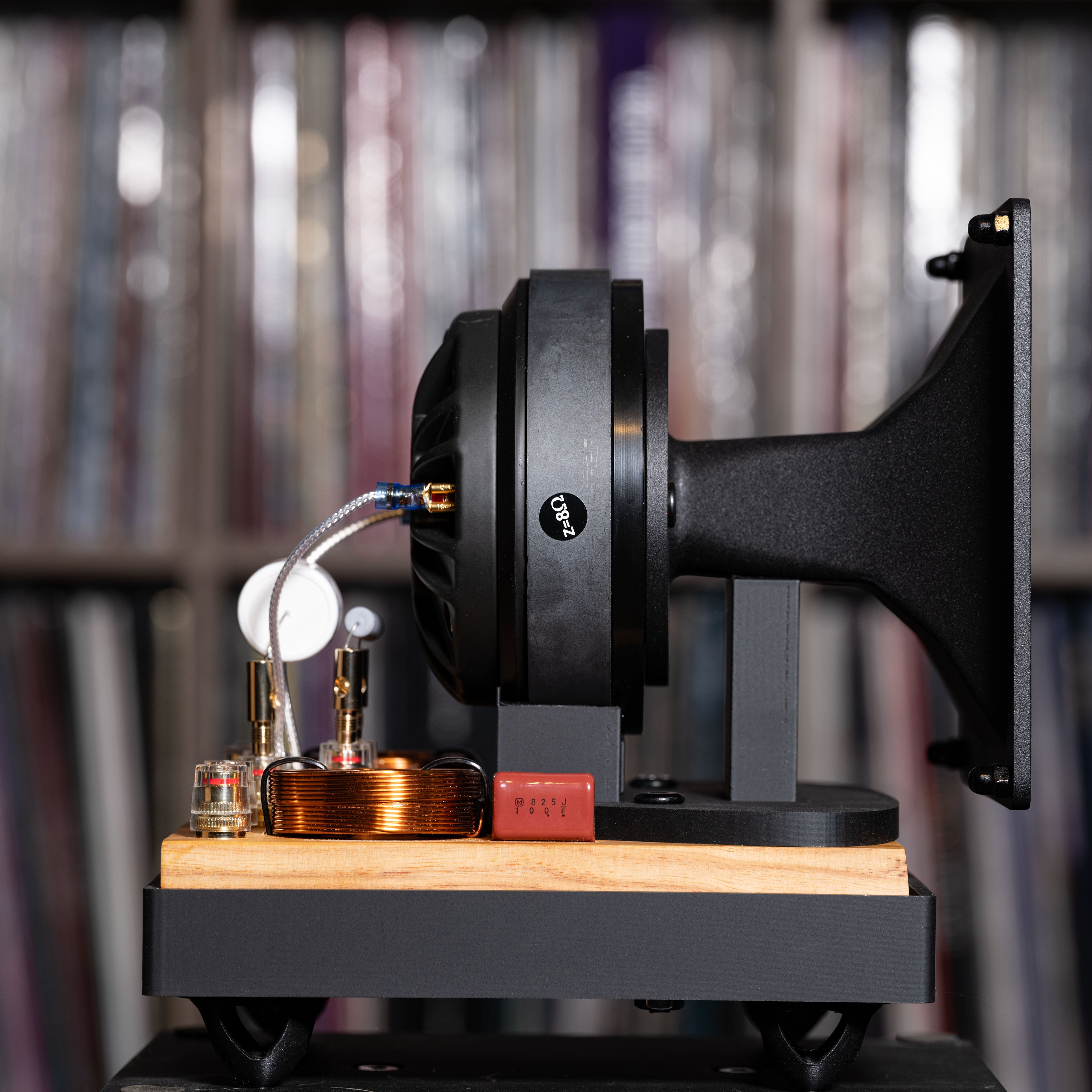

The external hardwood plinth isolates the horn and crossover from cabinet vibration and internal pressure, helping preserve clarity and consistency.

Continuum™ Tuning Array

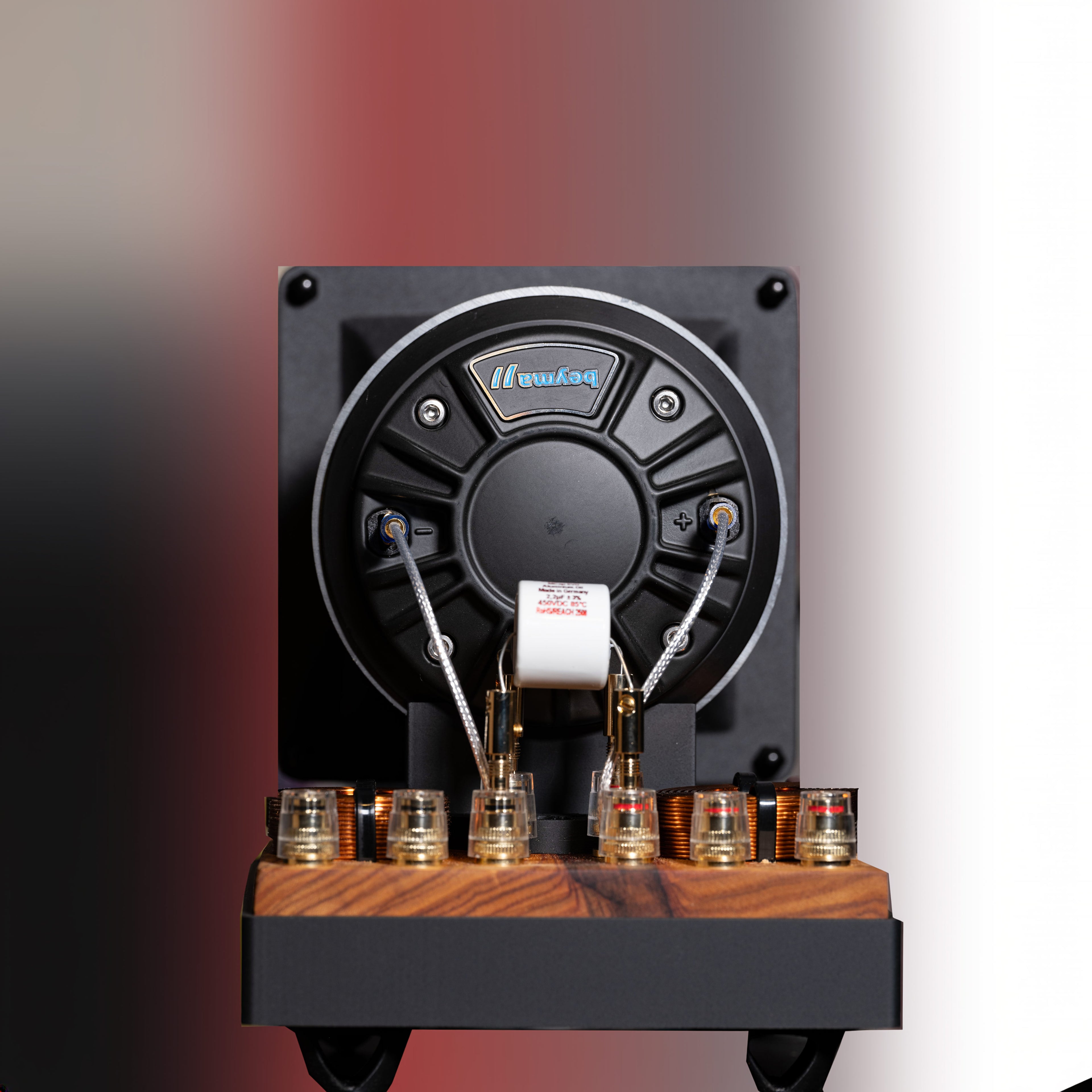

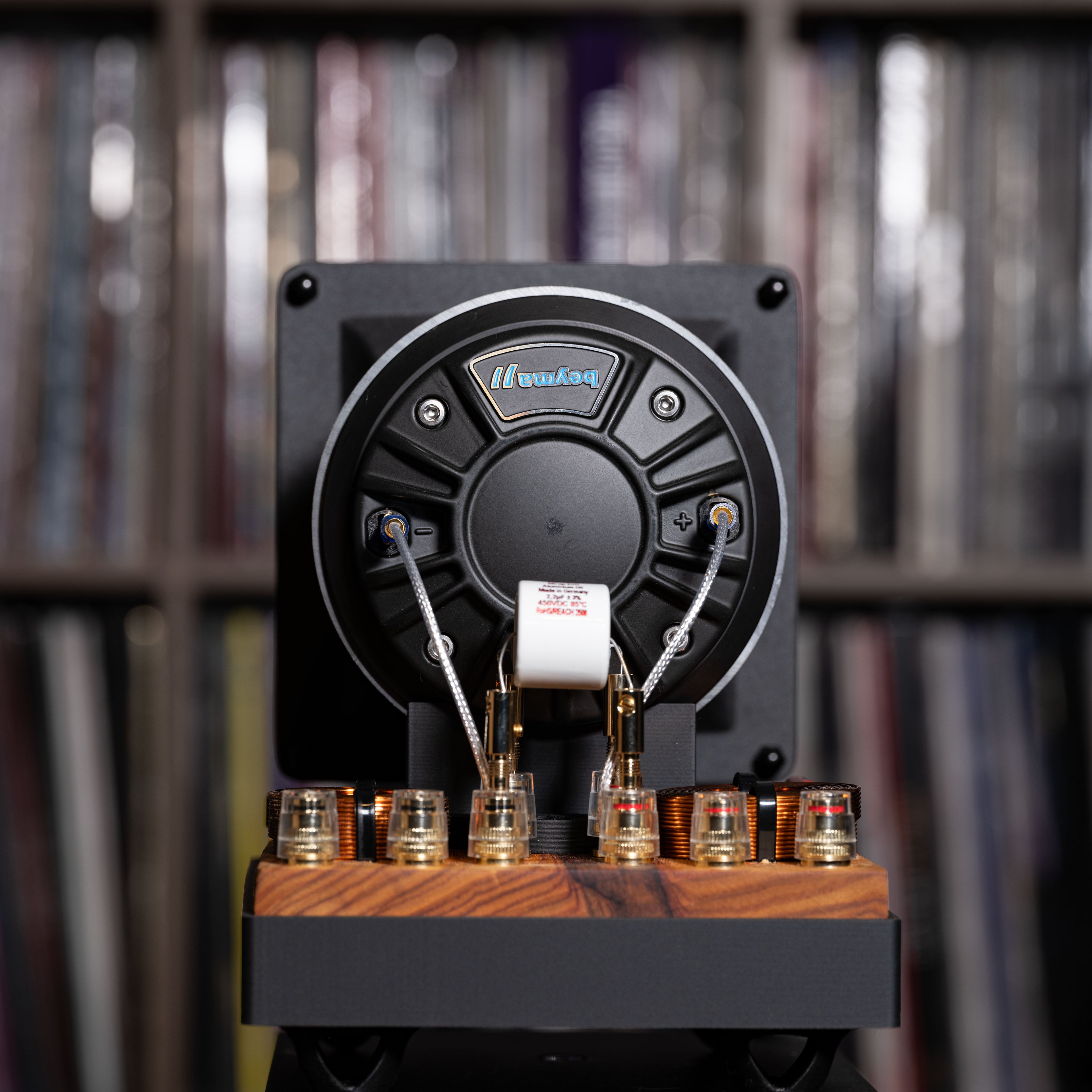

Every Atom Horn Engine Pair includes user-adjustable capacitor and resistor tuning arrays, allowing the system to be optimized for:

• Room acoustics

• Amplifier character

• Woofer sensitivity

• Personal listening preference

Adjust the presentation from Bold to Neutral, Relaxed, Reserved, or Whisper with simple tuning changes.

What's Included

• Pair of Atom Horn Engines

• Compression drivers - CD 171 FE/PK Beyma

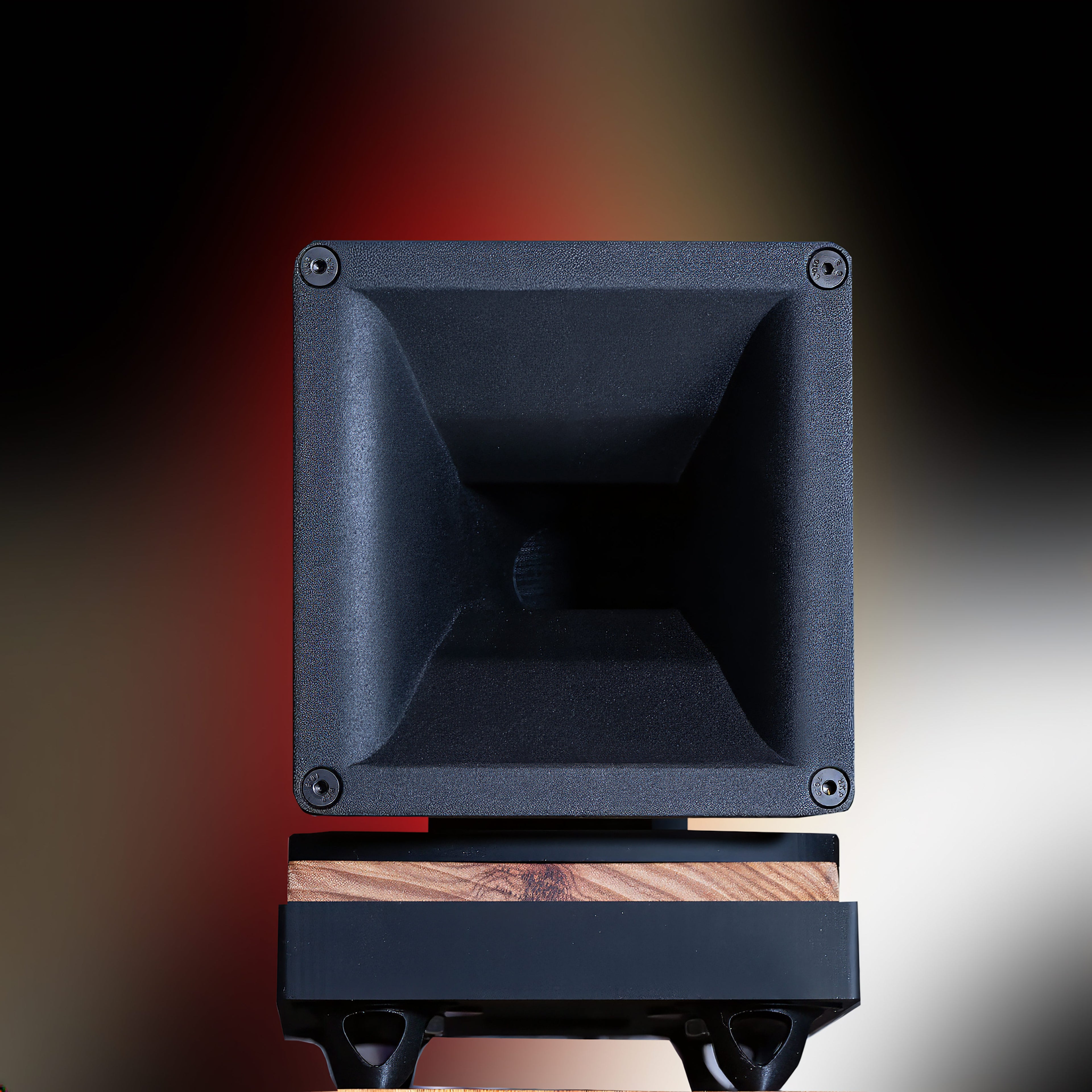

• Horns - ME45 6 inch B@C

• External Continuum™ crossover assemblies - scaled down Horn X2

• Capacitor tuning array - adjustable crossover slope

• Resistor tuning array - adjustable horn volume

• Woofer-specific resistor recommendations - to suit your speskers

• Product Care & Assembly Guide

• Specifications:
  Height - 8 inches
  Width - 5 inches
  Depth - 7 inches
  Horn type -ME 20 6 inch horn
  Compression Driver - Cd171 FE/PK Beyma
  Frequency response - 2500 Hz to 20 kHz


  Important Information

The Atom Horn Engine Pair is a standalone horn platform designed for integration into your own loudspeaker project.

It includes the information necessary to integrate the horn with your selected woofer, including recommended resistor values.

Cabinet plans, enclosure dimensions, internal volume, port specifications, crossover schematics, bracing layouts, damping methods, and other proprietary design information used in Shinjitsu Audio production loudspeakers are not included or provided.

The Atom Horn Engine Pair is not sold as a speaker kit or blueprint for reproducing a Shinjitsu Audio production loudspeaker.

Technical Highlights

• Compact horn platform

• External hardwood horn platform - wood of choice see wood options

• Continuum™ crossover architecture - scaled down Horn X2 Horn Engine

• User-adjustable capacitor tuning - slope

• User-adjustable resistor tuning - volume

• Designed for compact high-efficiency loudspeaker systems




Shipping

Flat-rate shipping: $199 (Continental U.S.)

To minimize the possibility of shipping damage, the Atom Horn Engine Pair is shipped partially assembled. Final assembly typically requires only a few minutes.

A printed Product Care & Assembly Guide is included with every Atom Horn Engine Pair.

Speaker cables are not included.
