MAGNUM SPEAKER

Handcrafted to Order

Every Magnum Horn Speaker is individually handcrafted, assembled, voiced, tested, and carefully packaged before shipment.

Estimated Build Time: 6–8 weeks

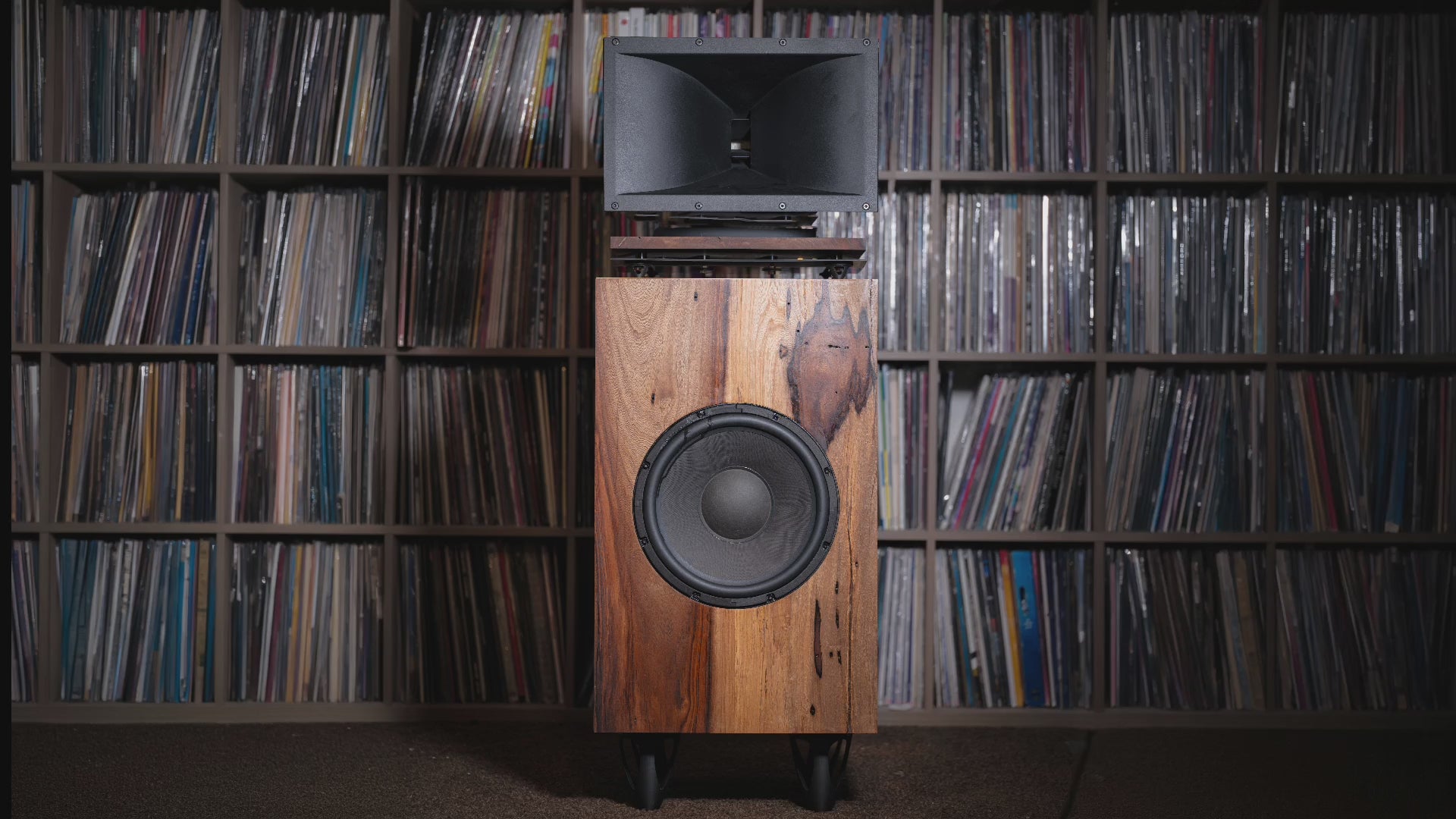

Large-Format Horn Speaker

The Magnum Horn Speaker is a complete Large Format Horn speaker system  using the large format horn engine and Pro Audio 12BR70 12 inch woofer.

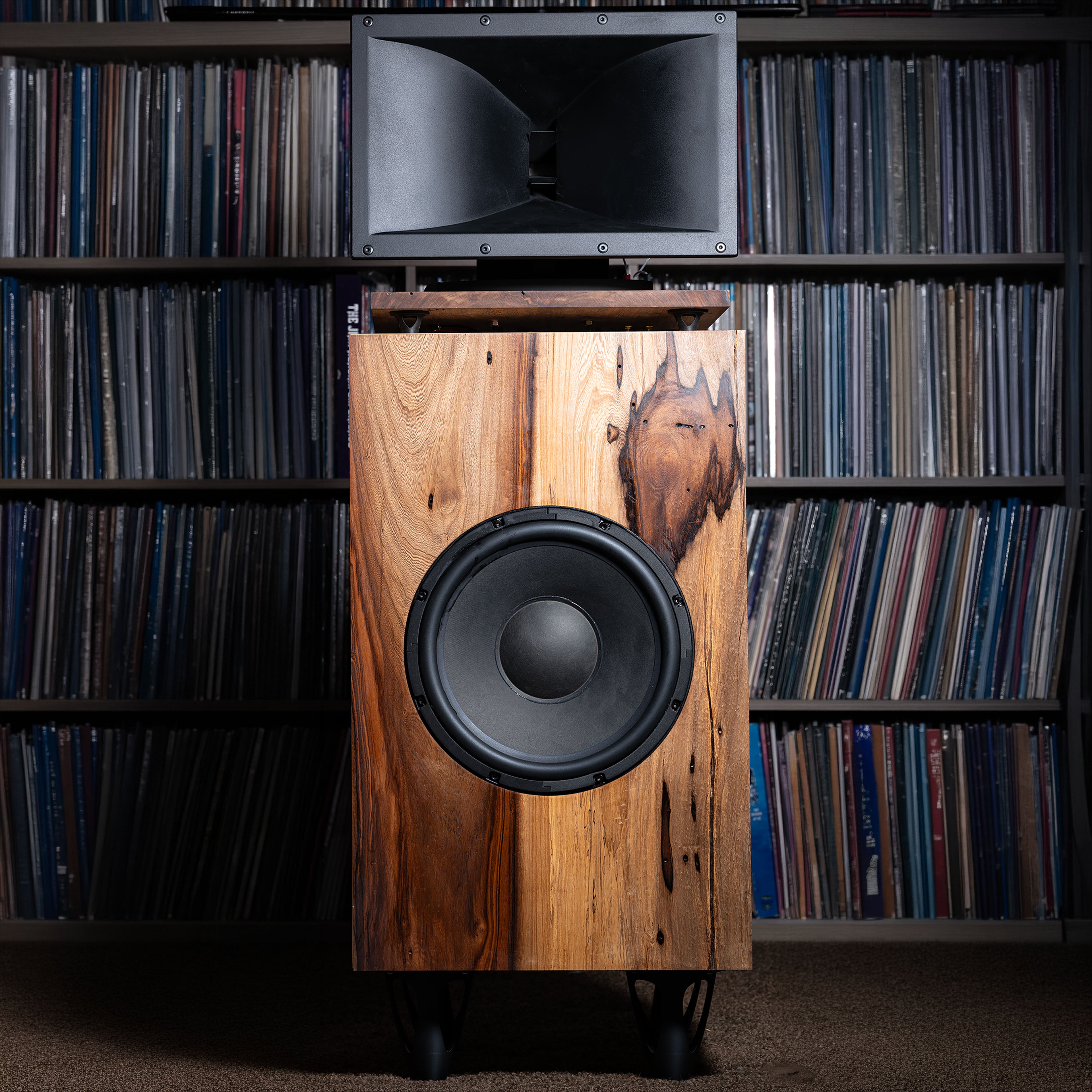

Built around the massive 16-inch Beyma TD460N large-format horn, Beyma CP750ND 2-inch compression driver, and the proprietary Continuum™ Crossover Architecture along with the pr 12BR70 12 inch woofer in a 80 L cabinet, it delivers exceptional dynamics, articulation, and large-scale realism while eliminating the need for a conventional three-way loudspeaker.

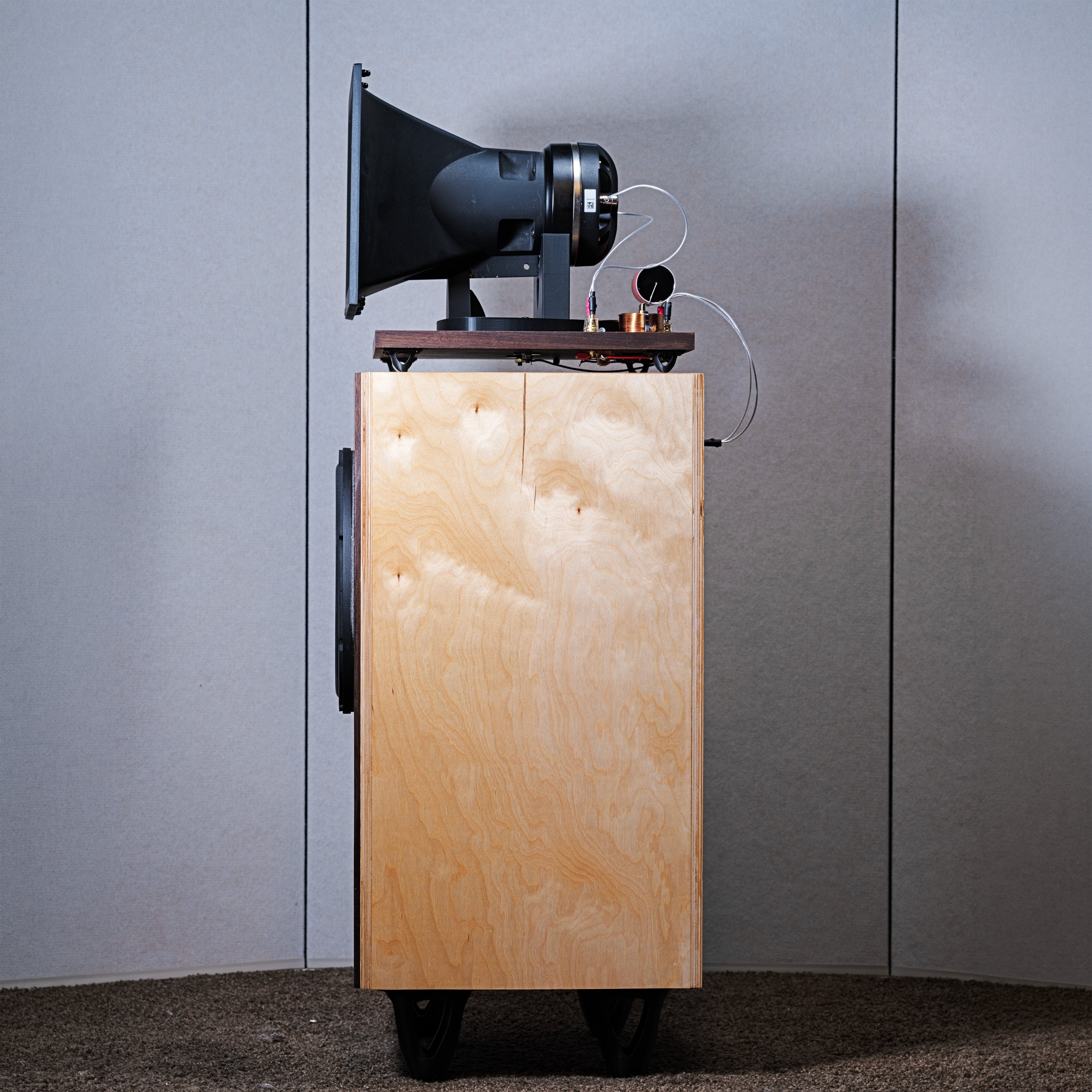

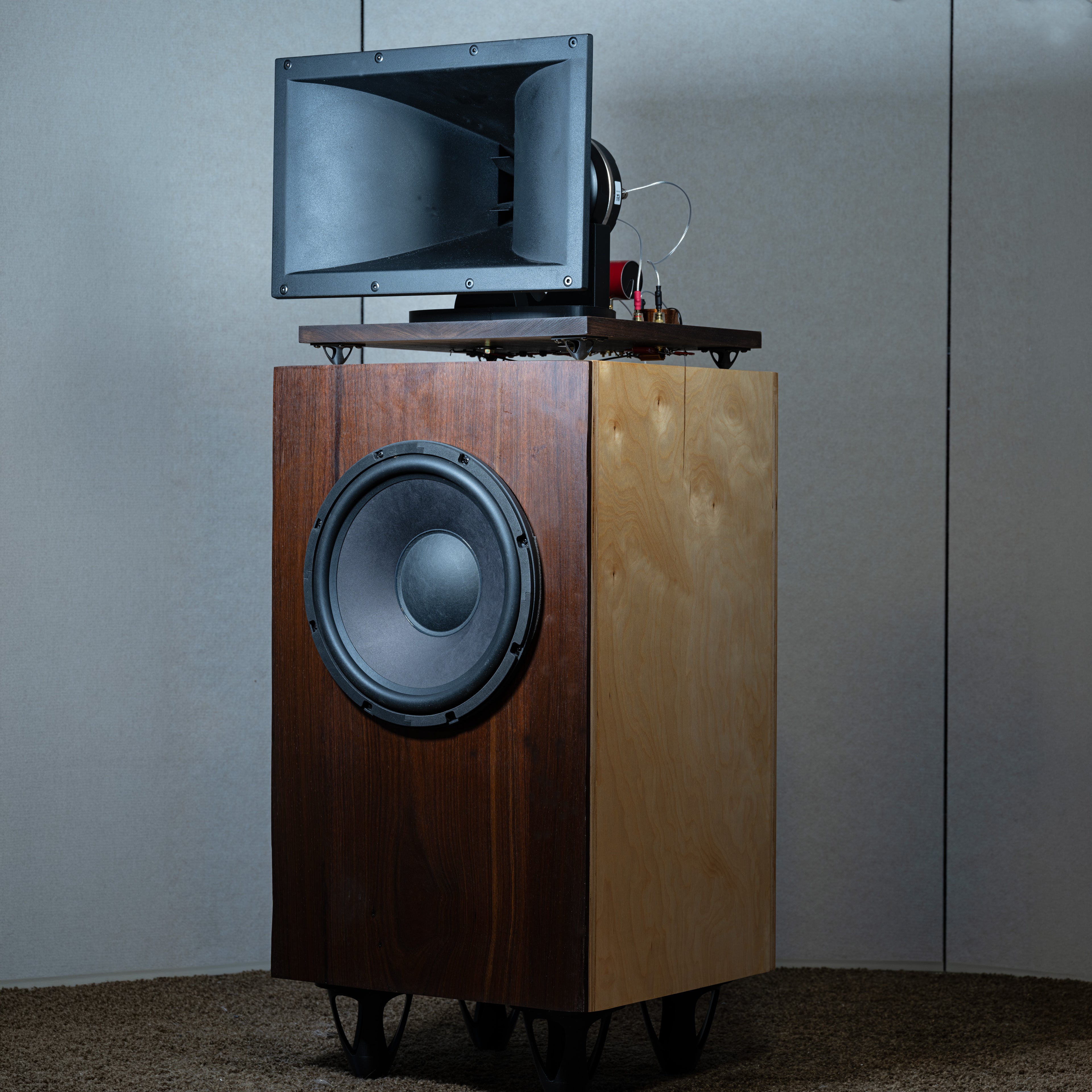

The Larger external hardwood plinth isolates the horn and crossover frees it from cabinet vibration and internal pressure, allowing the system to perform with maximum clarity and consistency. The 16 inch horn is mounted nude on a robust styled 3D printed cradle to insure zero cabinet reflections and correct timbre.

Continuum™ Tuning Array

Every Magnum Horn Speaker includes user-adjustable capacitor and resistor tuning arrays, allowing the system to be optimized for:

• Room acoustics

• Amplifier character

• Personal listening preference

Adjust the presentation from Bold to Neutral, Relaxed, Reserved, or Whisper with simple tuning changes.

What's Included

• Magnum Horn Engine

• Beyma TD460N large-format horn

• Beyma CP750ND compression driver

• Beyma 12BR 70 woofer (12 inch)



• External Continuum™ crossover using an oversized Horn X2 Engine  - Jantzen Supreme capacitors)

• Capacitor tuning array - adjust crossover slope on the fly

• Resistor tuning array - adjust horn volume on the fly

• Choice of wood face see wood options 1/4 inch hardwoods veneer free



• Product Care & Assembly Guide



Important Information

The Magnum Horn Speaker is a complete horn speaker.

Cabinet plans, enclosure dimensions, internal volume, port specifications, crossover schematics, bracing layouts, damping methods, and other proprietary design information used in Shinjitsu Audio production loudspeakers are not included or provided please do not ask.

The Magnum Horn Engine is not sold as a speaker kit or blueprint for reproducing a Shinjitsu Audio production loudspeaker. It is  complete Large Format Speaker ready to play.

Technical Highlights

• 16" Beyma TD460N large-format horn

• Beyma CP750ND 2" compression driver

• Beyma 12BR70 12 inch woofer



• External hardwood horn platform - wood of choice

• Continuum™ crossover architecture oversized Horn X2 archiceture

• User-adjustable capacitor tuning

• User-adjustable resistor tuning




• Specifications

  Height - 40 inches with feet included
  Width - 16.5 inches
  Depth - 16 inches
  Horn type -ME 20 6 inch horn
  Compression Driver - Cd171 FE/PK Beyma
  Frequency response - 30 Hz to 20 kHz

Shipping

Flat-rate shipping: $450 (Continental U.S.)

To minimize the possibility of shipping damage, the Magnum Horn Speaker is shipped partially assembled. Final assembly typically requires only a few minutes.

A printed Product Care & Assembly Guide is included with every Magnum Horn Engine.

Speaker cables are not included.
